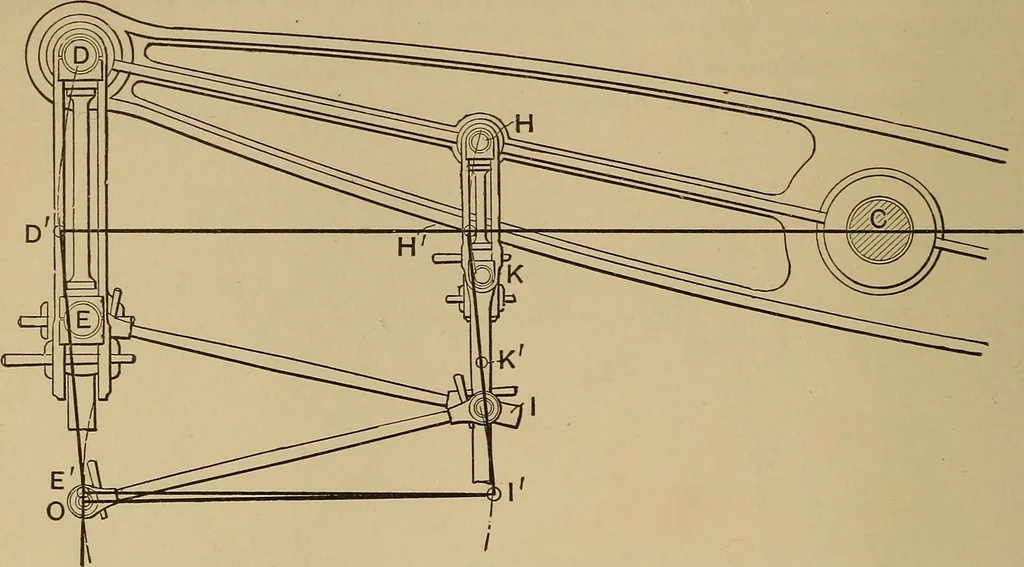

. tangent drawn from each side of the crank-path to the point e will give the extrememovements of the link e, and a line at right angles to this line and from the centre of thecrank-shaft on each side will divide the crank-path in two parts. The tool-holder, /, orplaner platen, travels over an… … Fig. 416,
