Characteristics of a three phase and single phase induction motor (1912)
Belt, Jefferson Hall, Murray, Norris Fay · leaf 72

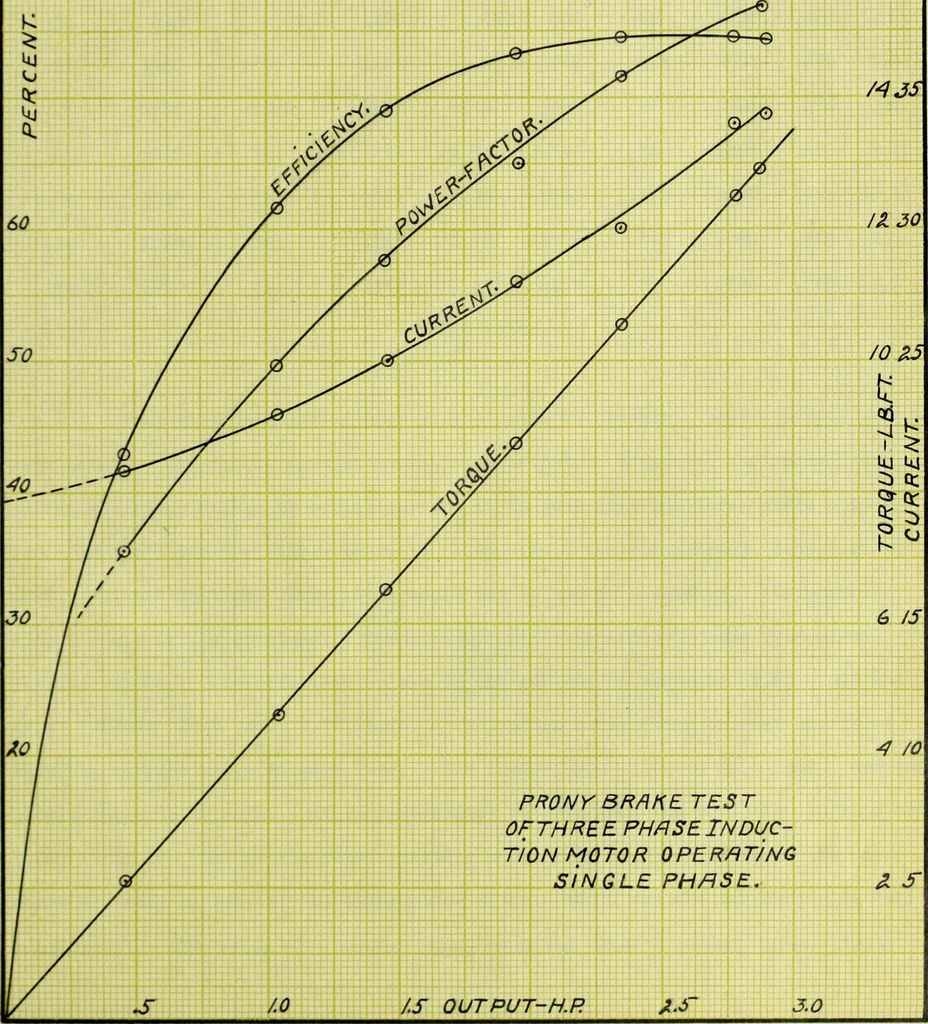

80 … 31. SINGLE PHASE DATA AND CALCULATIONS. I ■ T R.P.M. H.P. Out Eff. Volt P.F. T amps. inputwatts lb. putwatts. amp. 1 V> ft L U . 1 U 21 820 5 1190 .472 352 .43 2310 .355 2.08 23 1260 11. 1184 1.04 775 .615 2530 .498 4.58 26 1580 15.6 1179 1.46 1090 .69 2750 .575 6.5 28 2000 21. 1174 1.96 1460…Electric motors, Induction · Electric motors, Polyphase · Theses
Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
