The cheap cottage and small house : a manual of economical building (1913)
Allen, J. Gordon (John Gordon) 1885- · Letchworth, Eng. : Garden City Press · leaf 123

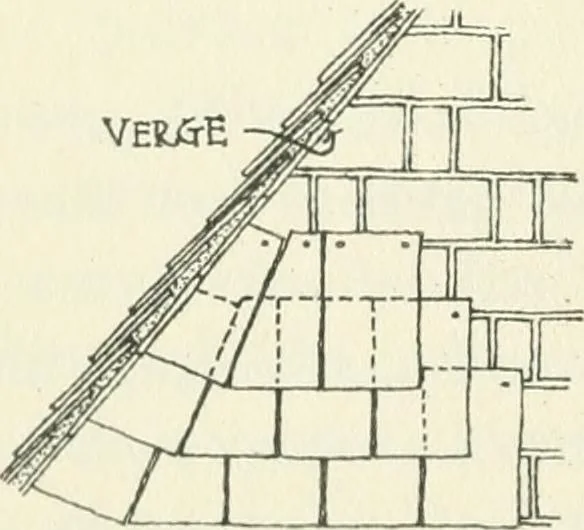

Fig. 69. — Geometrical tiles are shownhere. They can be nailed to ordinary brick-work, to the appearance of which they lookverysiniilarwhen in position. (Seepage 105). … Fig. 70.—This drawing, referred to onpage 111,shriws the verge at a gable end.The projecting tiles should have a soffitcourse bedded flat, and be jointed in cement.Tile-hanging is also shown here nailed tobrick-on-edge.
Architecture, Domestic
