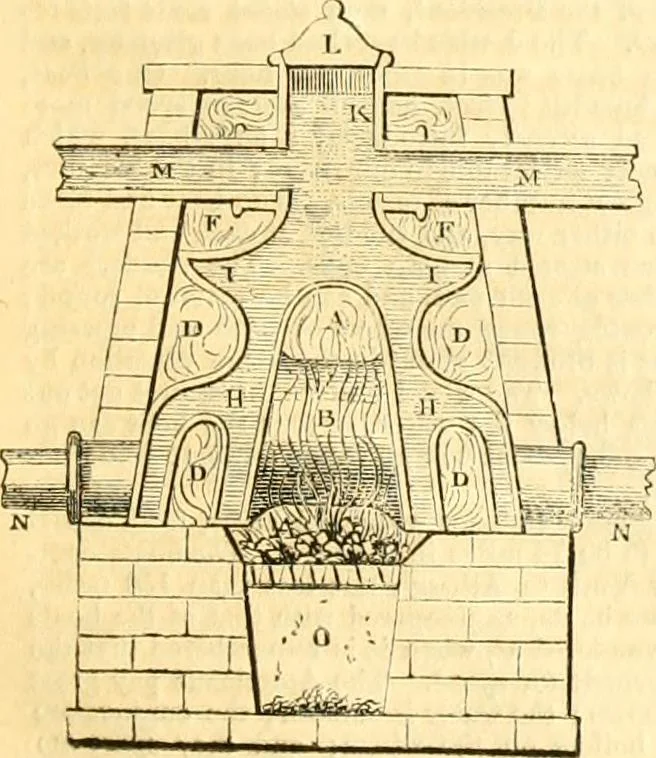

Fig. b.—Section of Circular Boiler. … Description of Engravings. Fig. 1 is the elevation of the front. Fig. 2 a transverse section across the boiler and furnace.Fig. 3 a longitudinal section through the centre ; and Fig. 4 a plan of the furnace and lowerpart of the boiler. The same letters refer to similar parts in each figure. a is…
