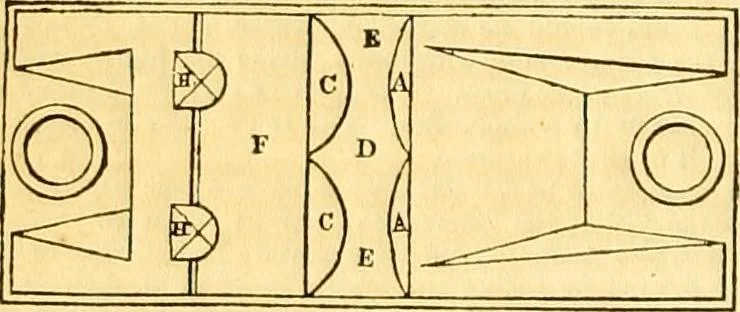

Plan of Double Chair, the Rail being omitted. … The above engravings contain a plan and elevation of a joint, or doublechair. The same letters refer to the same parts in both figures. In theelevation of the chair, the rail is sectionally represented in its place ; in the planit is omitted. The seat of the rail in the chair at D is convex, being…
