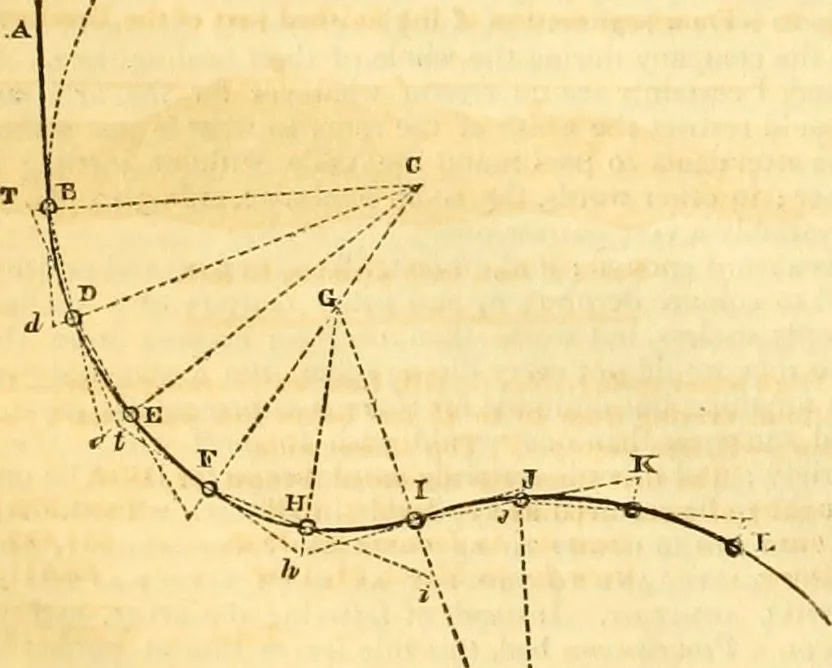

ind a curveof about I I chains radius on the same railway round which Cihniiohcertainly with considerable diffi ulty) heavy waggons are daily pulledby horses. I know nothing of the modes usually adopted on laying out railway curves, therefore, for what I know, what follows may be unworthy of notice… … 1.— To mark out a curve of a certain given radius. Let AB be the straight line of a railway, B the point where the curveis intended to commence. BC, 1) C, &c radii of the curve to bedescribed, Dd the deviation from the straight line at the end of anyconvenient length Bd, then C d^ or (CD-fDrf)=…
