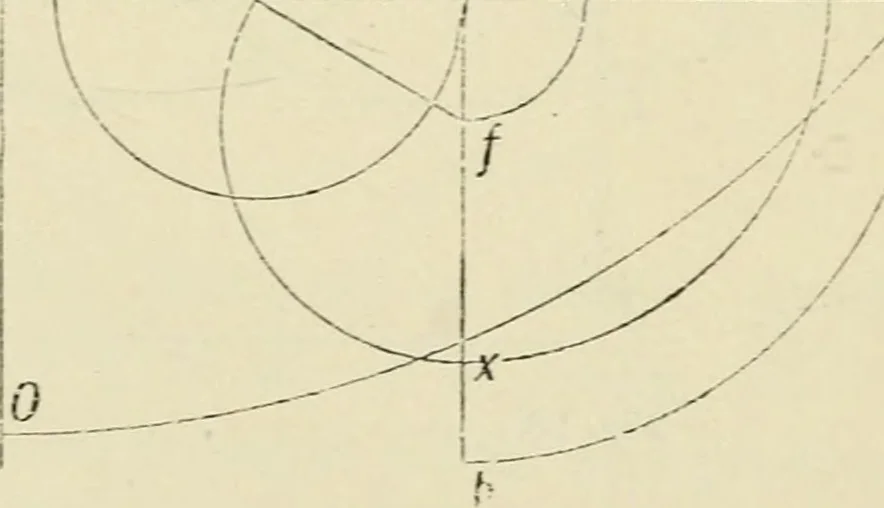

Fi^. 29. We proceed as follows :—After drawing H.L. and B.L. andfinding positions of 0, MP and C. Y., take A i to right of S;at A erect perpendicular AC = 4, and measure off AE = 1 andDE = 2. Produce CA to B, making AB = AC and FX = DE ;make FG = FX and GH= GA; join HKMP, GLMP, A C.Y., thp:…
