The Civil engineer and architect's journal, scientific and railway gazette (1839)
London : [William Laxton] · leaf 378

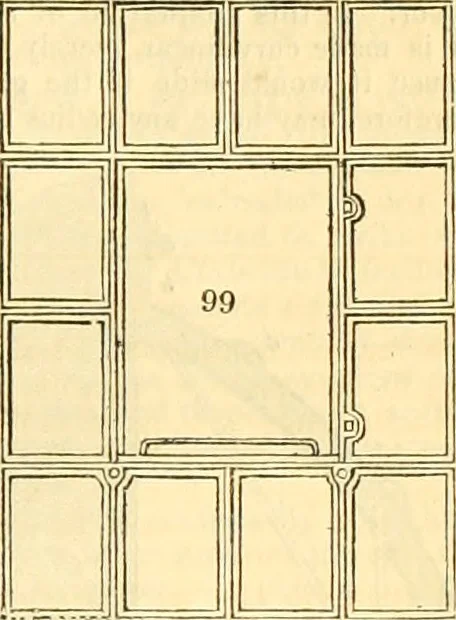

e, but by the contact of the edges of the sides of the small windowwith the beads forming the rebates attached to the inside of theframe; and also by means of the contact of the beads, or rebates, ofthe small window with the edge of the sides of the large one, or frameinto which it shuts. In… … 100 \ i S V-i-r-r-71 r-io r-™ . a ^ 6 6 :ii> 12IK4 Fig 101 is a horizontal section across the small window and the twoside bars, showing the outside beads ^tgg, and the inside beads at h It. 101 S Fig. 102 is a vertical section through the small window,and the top and bottom bars of the fixed…
