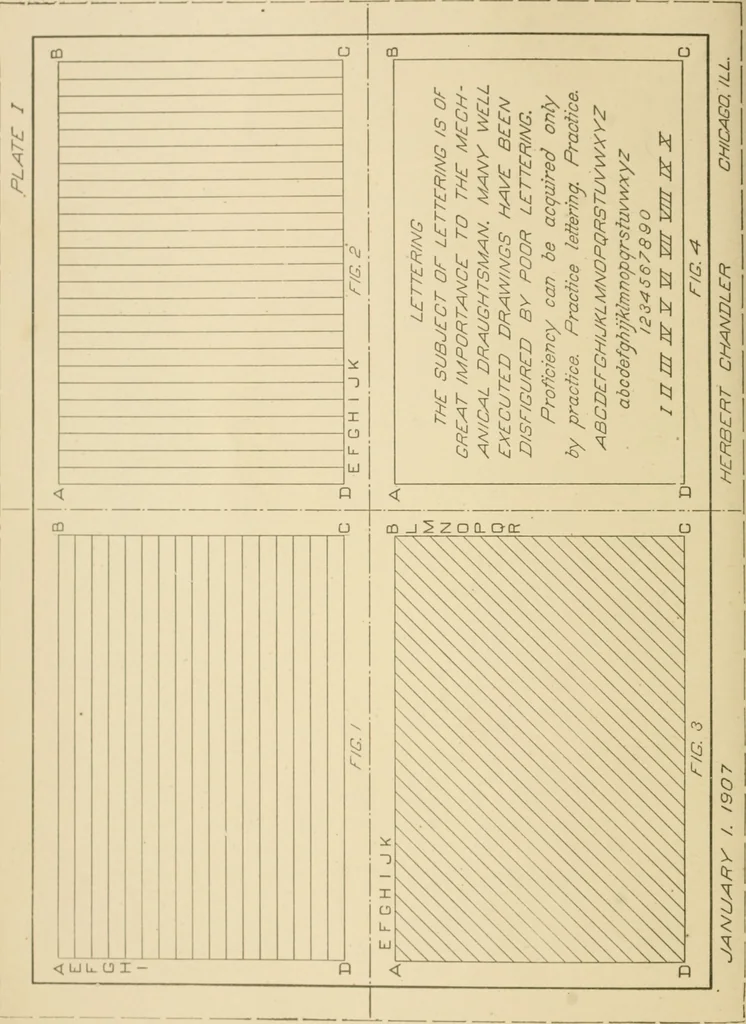

-- can correct inaccuracies while 3fi … MECHANICAL DRAWING. 29 inking; but experience soon teaches them that they cannot do so.Fig. 2 is an exercise with the line pen, T-square and triangle.First divide the lower line D C of the rectangle into divisions eachI inch long and mark the points E, F, G, H, I, J, K, etc., as inFig. 1. Place the…
