The Civil engineer and architect's journal, scientific and railway gazette (1839)
London : [William Laxton] · leaf 427

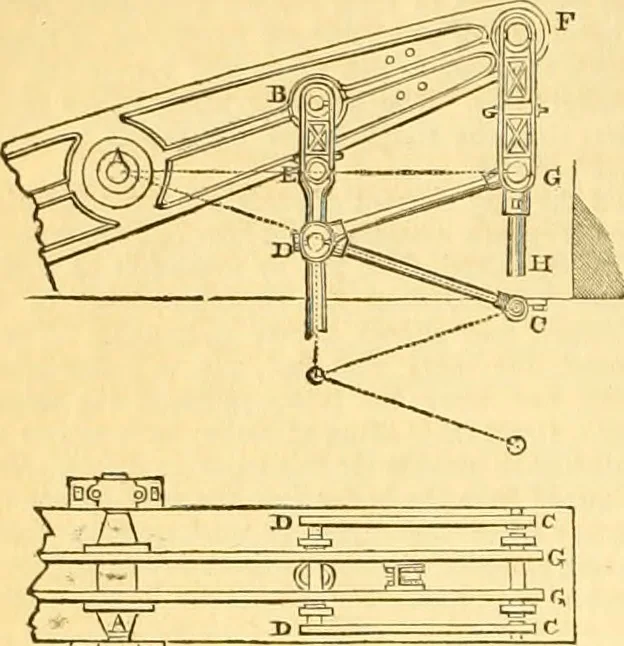

pring clock by its side.—.see fiq. 15. Matts governor is the secret, the principal secret, of the astonishing per-fection of the manufacturing products of the age; it is that which gives thesteam-engine an action free from any vibration, and which enables it withequal success to embroider muslin… … tkj^ PARALLEL MOTION. The apparatus adopted for carrying this motion into effect, is represented infig. 13, wliich is an elevation, or side view of one half of the engine beam ;and fig. 14, a plan of same ; similarletters, in both figures, refer to similar parts;the beam moving on its axis A, every…
