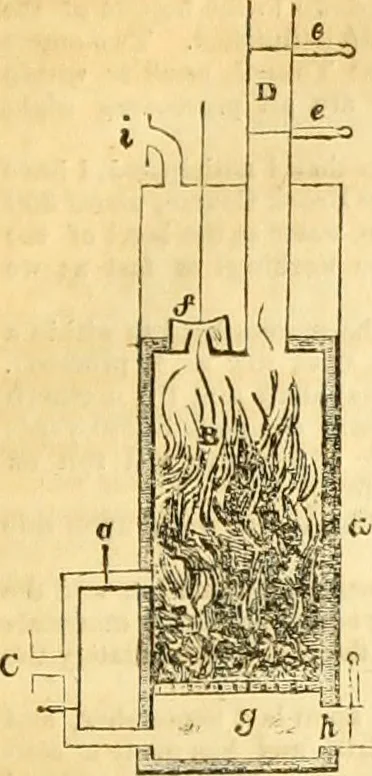

double hori-zontal high-pressure engine, thirty-five inch cylinder, and six ieet stroke, withtwo blowing cylinders, of half ihj capacity, worked by the piston-rod of thestcom cylinder passing through the loner or extreme head, and into the blo« ingcylinders; consequently, both will be of the same… … References Pipes, C, witli the necessary valves attached to the blowing cylinders, con-vey the air to the steam generator, wliosc outercase, a, a, is four feet diameter, and twelvefeet high, and the inner case, or furnace, B, isthree and a lialf feet diameter, and nine feethigh. Smoke and…
