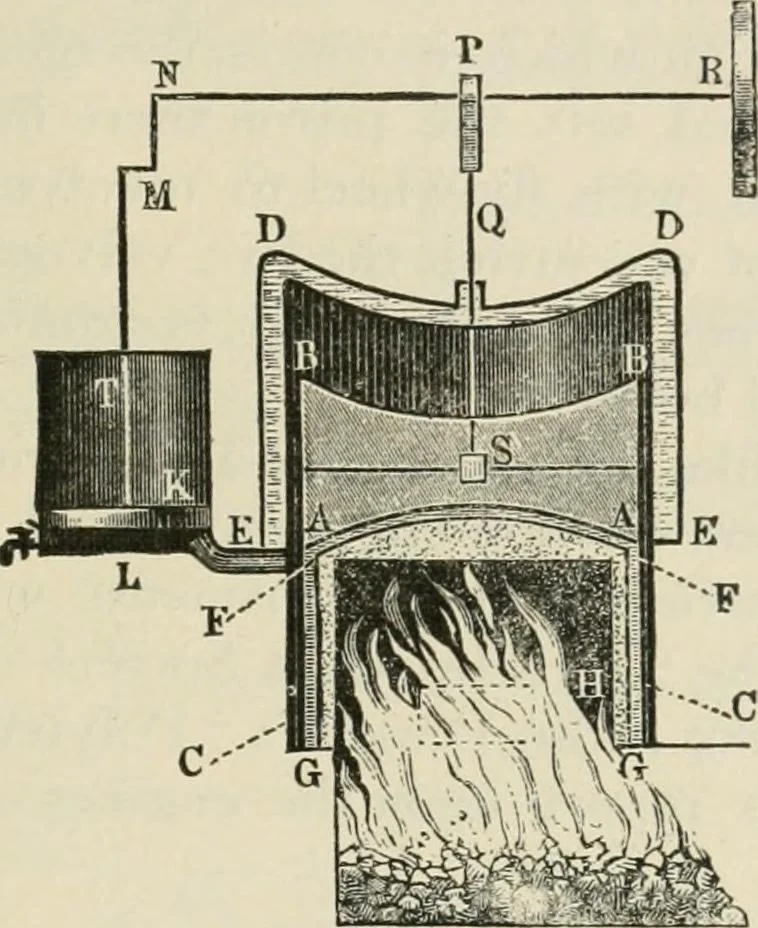

of air is used at eachrevolution, closed engines use the same quantity over.Such are the air engines of Schwarzkopf and Laubereau,as also of Belou, etc. In Fig. 812 we have represented Laubereaus airengine. The compressing piston A A B B, which here §517-] THE STEAM ENGINE. 5-^1 also has a… … i —0 and pass round along FGFG to the chimney, the open-ing of which is shown by the rectangle in broken lines.We see at once, that as the piston A A B B rises, the coldair passes from the space B B D D into the heated spaceA A FF, and inversely, as this piston descends, the heatedair in AAFF is…
