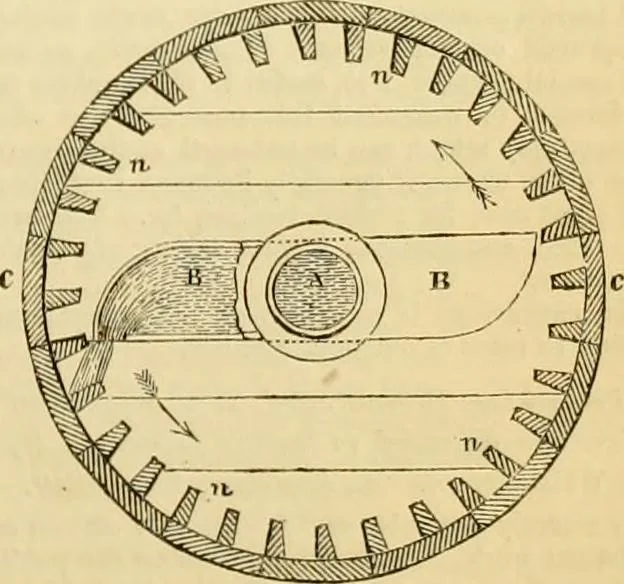

Fig. 3.—Plan partly shoHn in section. … terior circumference vertical float-boards )•, and horizontal floats n,which form cells, the water escaping into the tube through radiatingopenings left in the bottom as shown, thus advantage is taken of themomentum of the water rushing into the wheel. E is the verticalshaft, upon which the crown…
