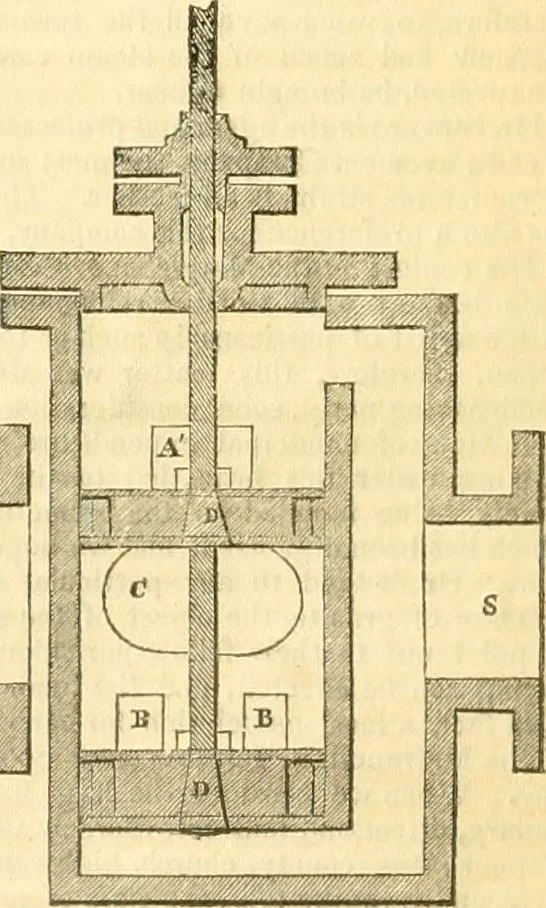

In the position of the. valve as sliown, the steam is admittedthrough S, passing through A into the cylinder, forcing the piston Pup. If it is wished to reverse the engine, we have only to move tliepiston valves to E E, as shown ; the steam being admitted through S,as before, passes through B B to…
