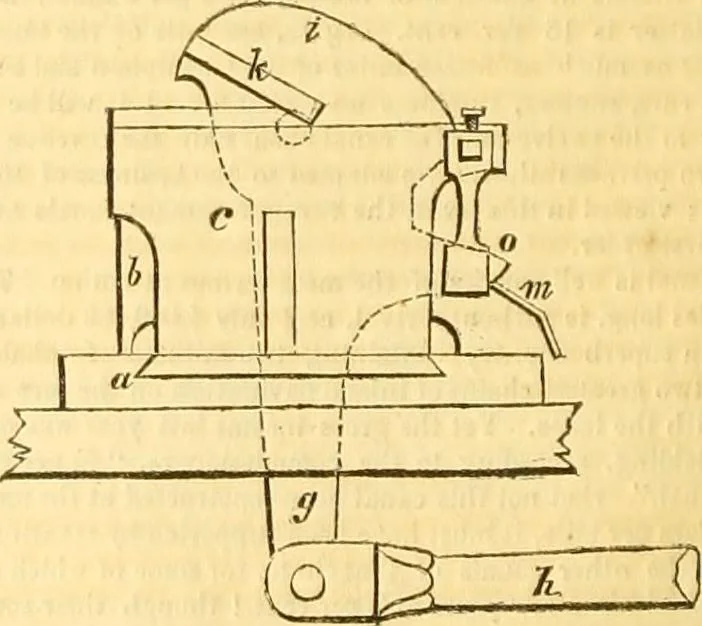

rrey Gladstone, of Swan Garden Iron Works, Wolverhampton,Iron master, for certain Improvements in machines for cutting or shearing ironand other metals, which improvements are applicable to olher like purposes.—Granted Dec. 28, 1843 ; Enrolled June 28, 1844. This invenlion consists principally in… … one side thereof; a is the foundation plate, and b a standard cast upon it, cand d are also two standards, dovetailed into the foundation plate and securedto the same by means of bolts, e is the shear, the form of which will he seenin fig. 2 partly shown in dotted lines ; this shear moves upon an…
