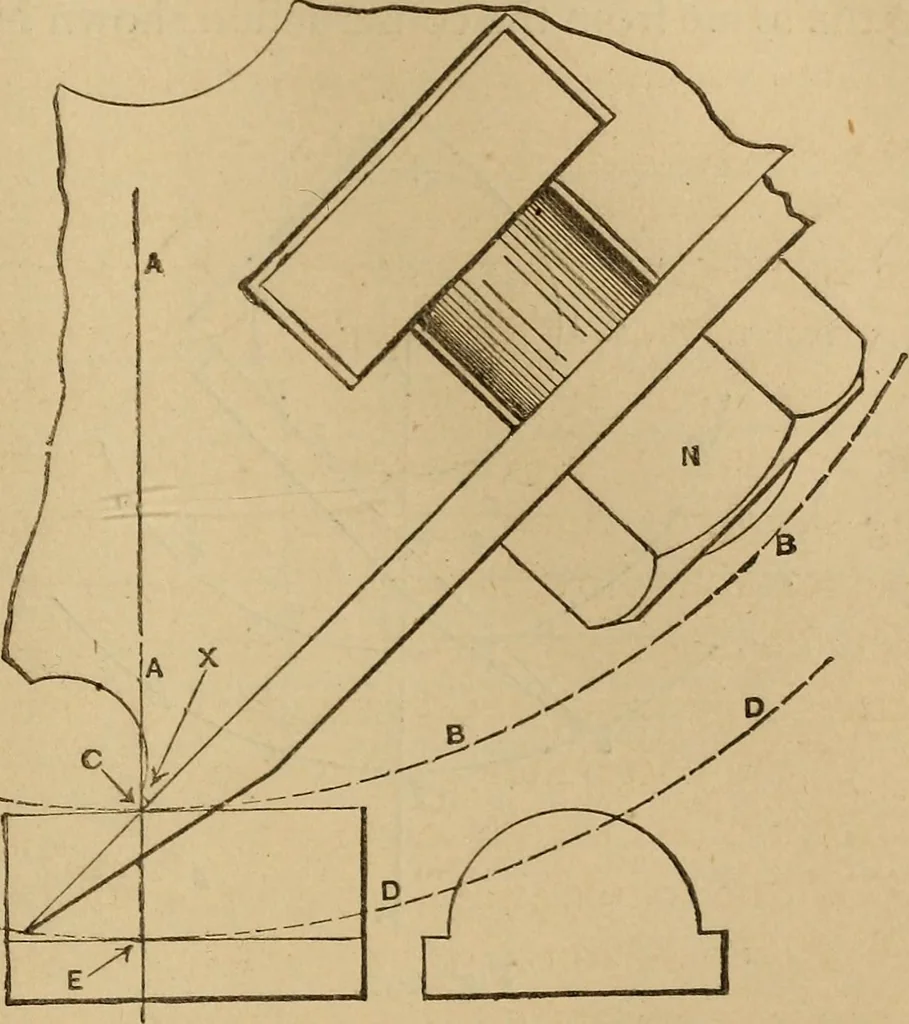

r X of the cutter-head. To find the length of the cutter (kX^ki necessary toproduce a glvcin de[)th of moulding, we may draw a PL O TIING MECHANICAL MO flONS. 259 circle/, Figure 292, equal in diameter to the size Ofthe cutter head to be used, and line A A. Thehighest point of cutting edge being at… … Fig. 291. Now the necessary depth of cutter edge being foundfor any given moulding, or part of a moulding, thecurves for the edge maybe found as follows: Sup-pose the moulding Is to be half round, as In the endview in Figure 290. The width of the cutter mustof course equal the width of the…
