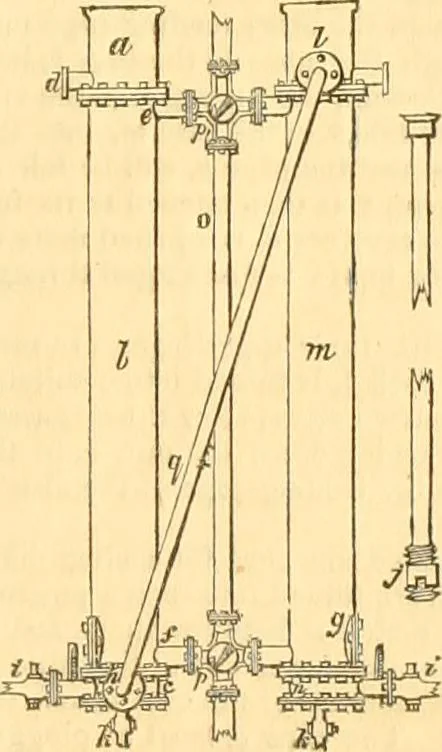

cy-linder, called the case; it is 12feet deep, with a flange at eachend, and two short lateral piecese, f, of 2^ inches bore; and justabove the lower flange, there is aflanged arm-hole g, of 6 inchesdiameter, closed perfectly water-tight by a door, when repairs arenot going on. c, is another… … 324 THE CIVIL ENGINEER AND ARCHITECTS JOURNAL. [August, Between the flange of the cistern and the upper fliinge of the case,and between the lower flange of the case and the upper flange of tliereceiver, a circuhir plate of gnn-uietal, one inch tliick, is interposed ;and in each plate 1G9 holes are…
