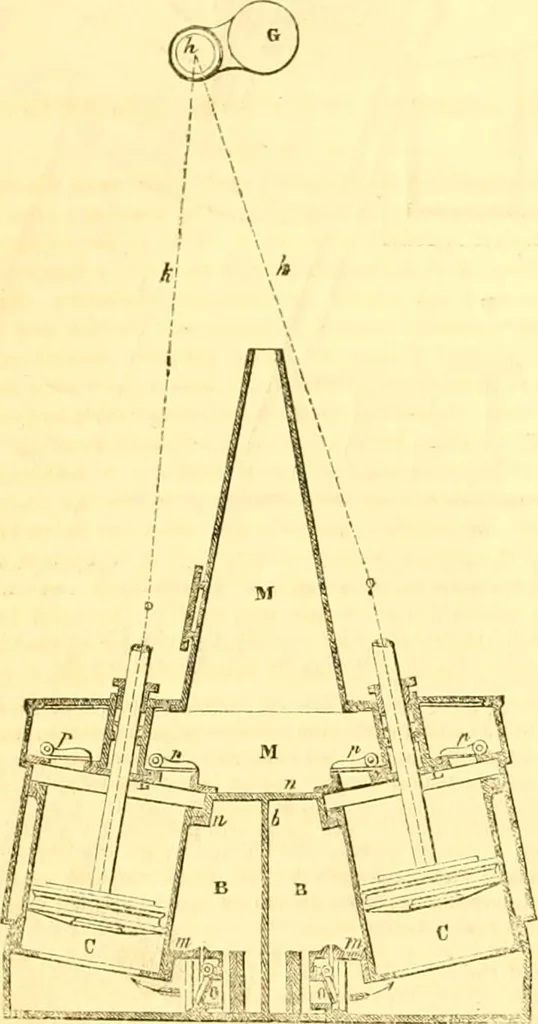

sary that the inclinedair-pumps should be put within the condenser, as is there represented, foreach pump may be joined to the condenser at bottom, beneath the lowerpartition m. by means of a branch projecting laterally from the bottom ofthe pump, or el^e projecting laterally fron) the condenser,… … being united to the condenser at the lower and at the upper parts thereof,in a similar manner to that whereby the air-pump of a marine steam en-gine, of the kind heretofore made by Messrs. Boulton and Watt, with side-levers, is most commonly connected to the condenser and hot-well of suchan engine,…
