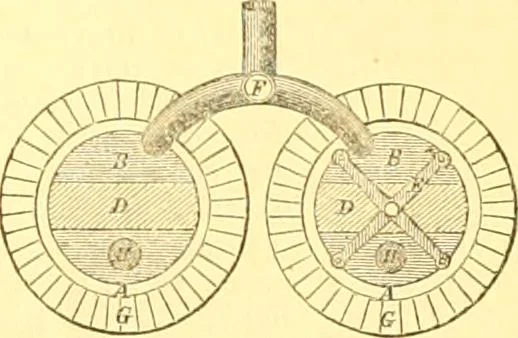

Description.—A AAA, the pits; BB B B, plate-iron water-tanks iC C, two wagons ; D D D D D D, part of the rails, and the bridgeacross the top of the tanks; E E E, different views of the cross con-necting the tanks and wire ropes; F F, water-pipes, provided withvalves, for fil ing the tanks—to be… … of the pits ; H H,exit valves, at the bottom of the tanks. The largewheel has a groove to receive the rope, or chain, as the case may be,and furnished with a brake, to regulate the motion and gripe tight, asthe wagons reach the proper places for pushing off and on. It will benecessary to attach a…
