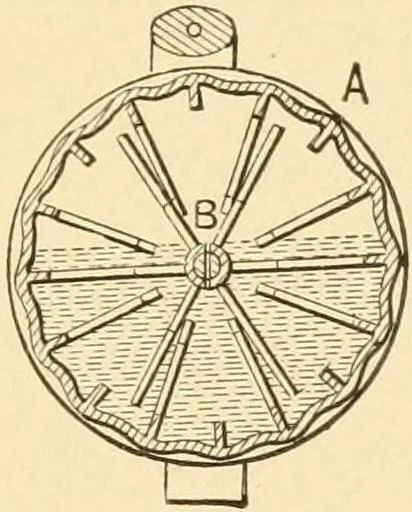

308. HUxXTOON GOVERNOR..—A ribbed cylinder, A, is partly filledwith oil. A paddle wheel, B, is re-volved by the pulley and shaft whichby fluid friction moves the ribbed cyl-inder and pinion in the same direction.The pinion meshes in the toothed sec-tor, which is counterbalanced by an^^ adjustable…
