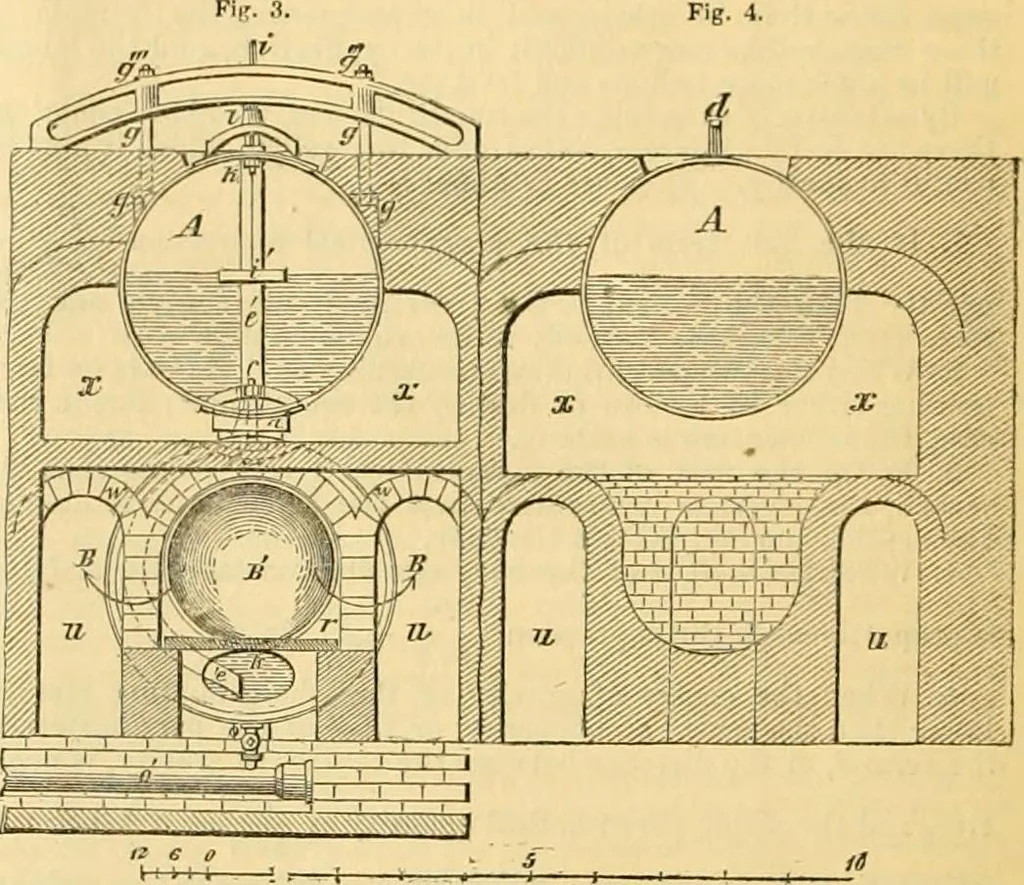

quare feet, per horse power,will prove a 30-horse power for the capability of the steam gene- rator. Tlie grate, 5 by 6 feet, or 30 spiare feet, harmonises per-fectly witli a 30-li(u-se high-pressure boiler. The u])|)er and lower brick flues are very large, and answer forburning all kinds of… … Reference to Engravings*Fig. 1, Longitudinal section.—Fig. 2, Top view of Furnace and Boiler.— Fig. 3, Vertical section through line 1—2, fig. 1. Fig. 4, Vertical section through line 3—4, fig. 1. A A, Cylindrical boiler, with hemispherical ends, containing only the steam-chamber, and the water to…
