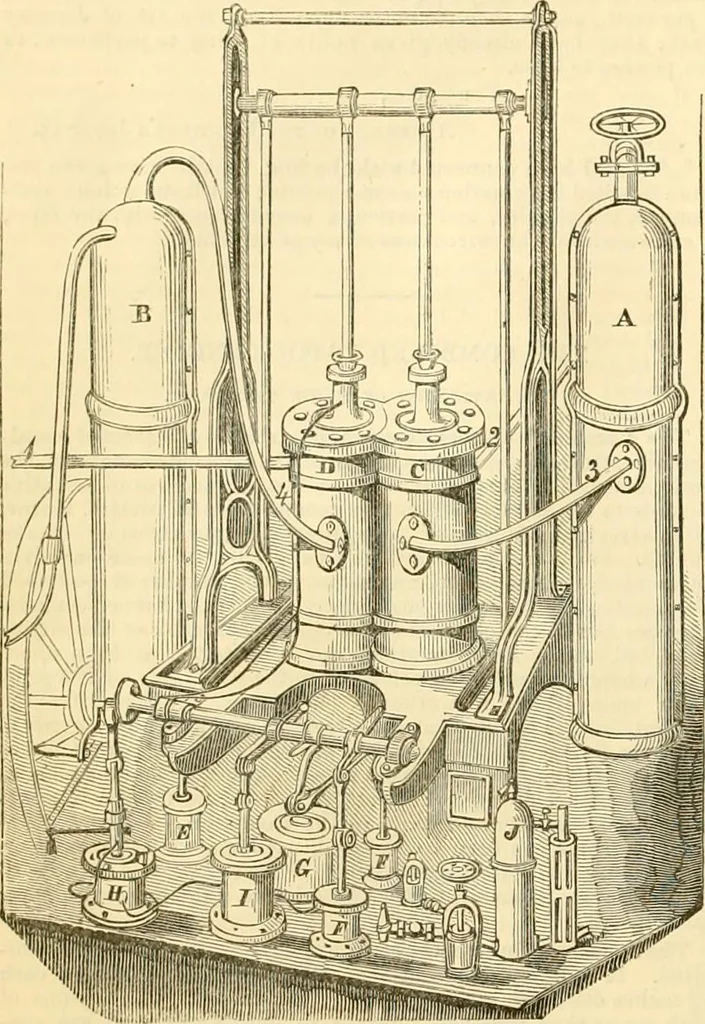

ater is required. The vapour thus obtained, by the action of the steam upon theperchloride or other liquid in the tubes (A), is conducted into thesecond cylinder (D), and, alter exerting its elastic force (which is-greater tlian that of steam), upon the piston in the second cylinder,is condensed,… … THE COMBINED VAPdlR KMUNK. References to Engraving. A, Vaporiser of the perchloijde, serving also as a condenser of the steam.B, Condenser of the vapour of the perchloride.—C, Cylinder in which thesteam acts.—D, Cylinder in which the vapour of perchloride acts.—E, Air-pump withdrawing the water…
