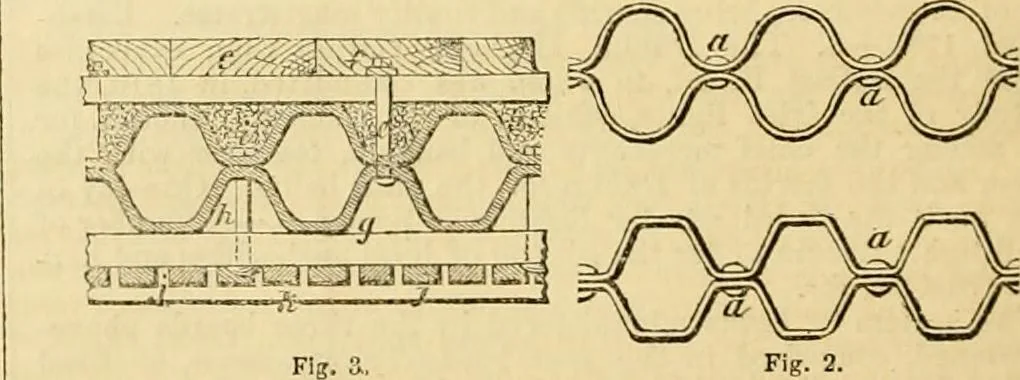

invention relates to the construction of fire-proof floors,roofs, and similar structures, with two or more plates of corru-gated iron, placed one over the other,—the corrugations of oneplate being so situated with reference to the corrugations of theother, that, when the plates are riveted or… … Fig. 2. Figs. 1, and 2, represent end views of two difl^erent forms ofcorrugated plates, which may be used for the purposes above-mentioned,—the plates being united by rivets at «, a. The formof corrugation may be varied; but that preferred by the patenteeis shown at fig.S. Fig. 3 represents a…
