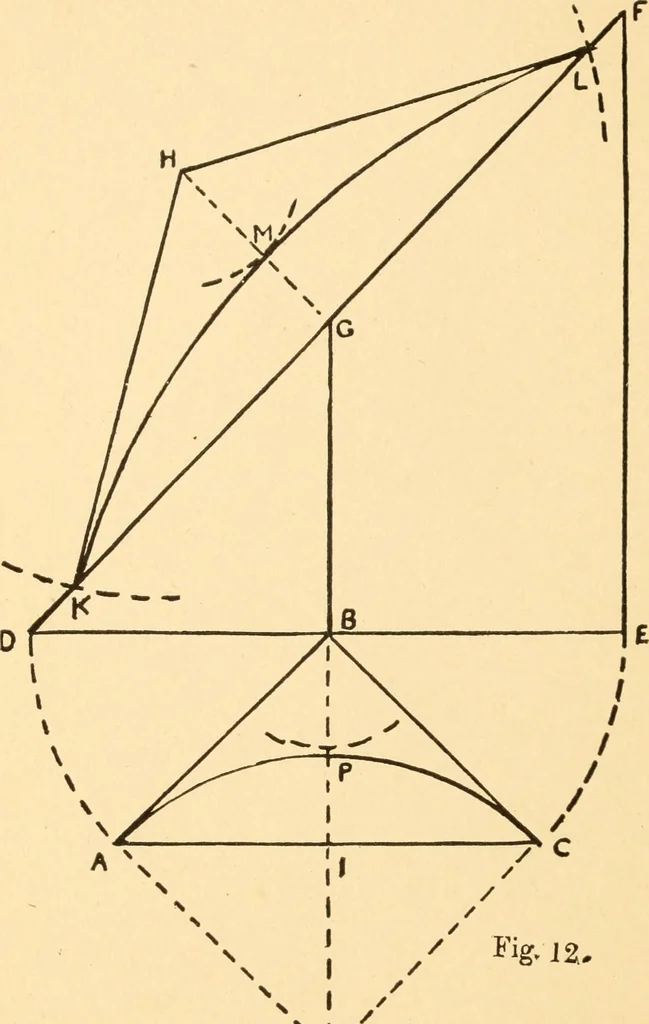

w tan-gents AB and CB, join AC; through the point B drawa straight line parallel to AC; with center B, withradius BA, describe the arcs AD and CE; at the pointE erect the perpendicular EF at right angles to DE toany desired height (in laying out a handrail this heightwill be the same as the height… … Fig, J 2, O BI. With the center H and radius DG describe arcs,cutting DF at K and L; draw HL and HK, which are FIRST METHOD
