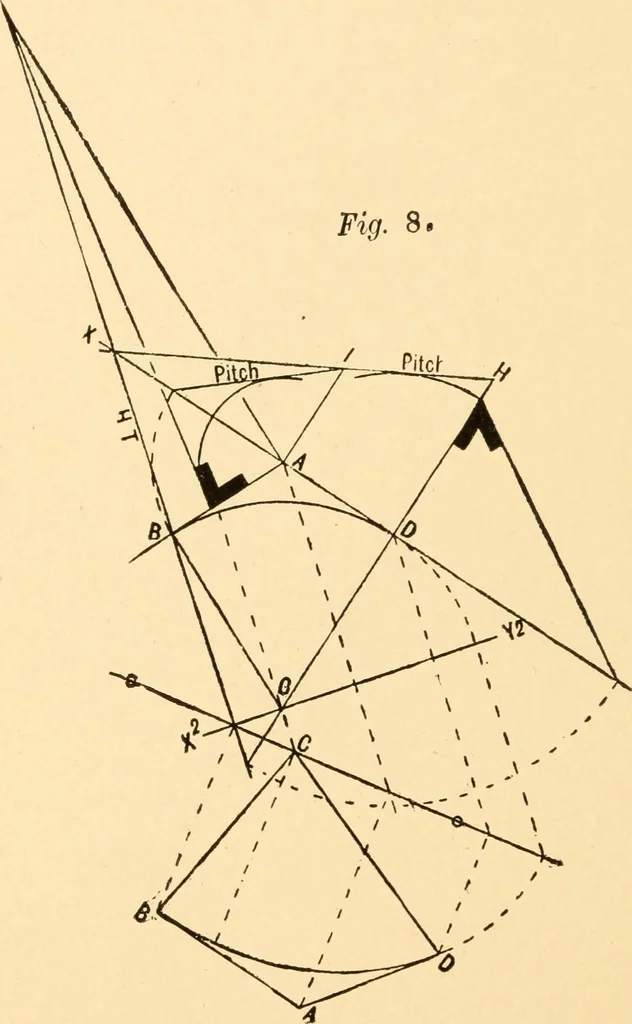

necessary bevels, that is, the angles the cut-ting plane makes with the vertical faces of the prism.A, B, C, D is the bottom face, and E, F, G, H the topface, and BI, HI the pitches the two faces are cut by.Produce the upper pitch to meet the ground line, AD, 68 COMMON-SENSE HANDRAILING produced… … / > THIRD METHOD 69 Pitch. line from the intersection to B, and in the angle isseen the bevel, B and D both being the same distancefrom A (see D, Fig. 6). Referring again to Fig. 7 itwill be seen that there is a second horizontal planecontaining the top face of the prism and the pitch BIproduced…
