Common-sense stair building and handrailing .. (1913)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, F. J. Drake & co · leaf 17

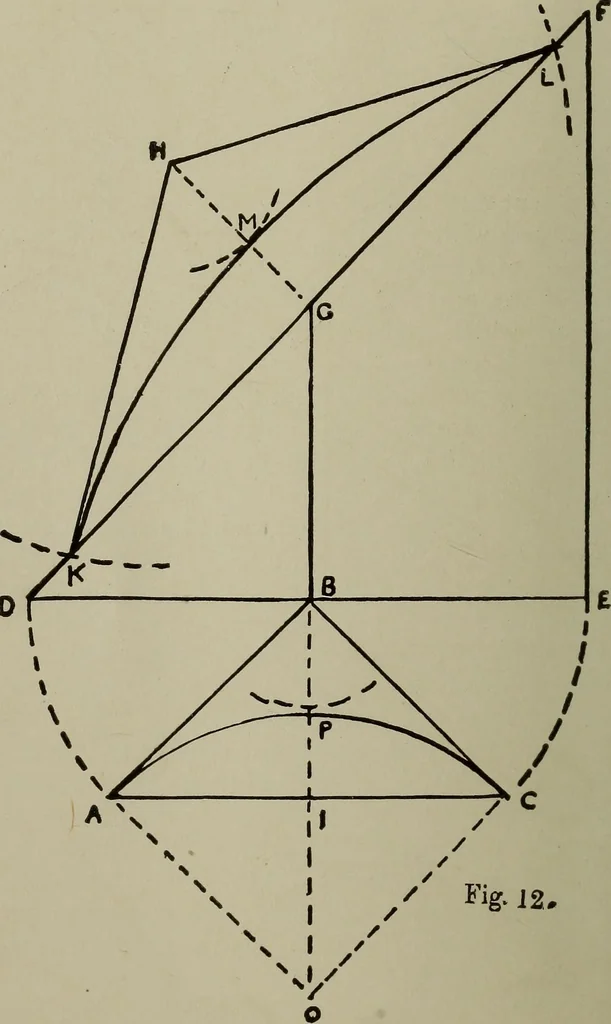

w tan-gents AB and CB, join AC; through the point B drawa straight line parallel to AC; with center B, withradius BA, describe the arcs AD and CE; at the pointE erect the perpendicular EF at right angles to DE toany desired height (in laying out a handrail this heightwill be the same as the height… … / Fig. J2, BI. With the center H and radius DG describe arcs,cutting DF at K and L; draw HL and HK, which are FIRST METHODH
Stair building · Hand-railing
