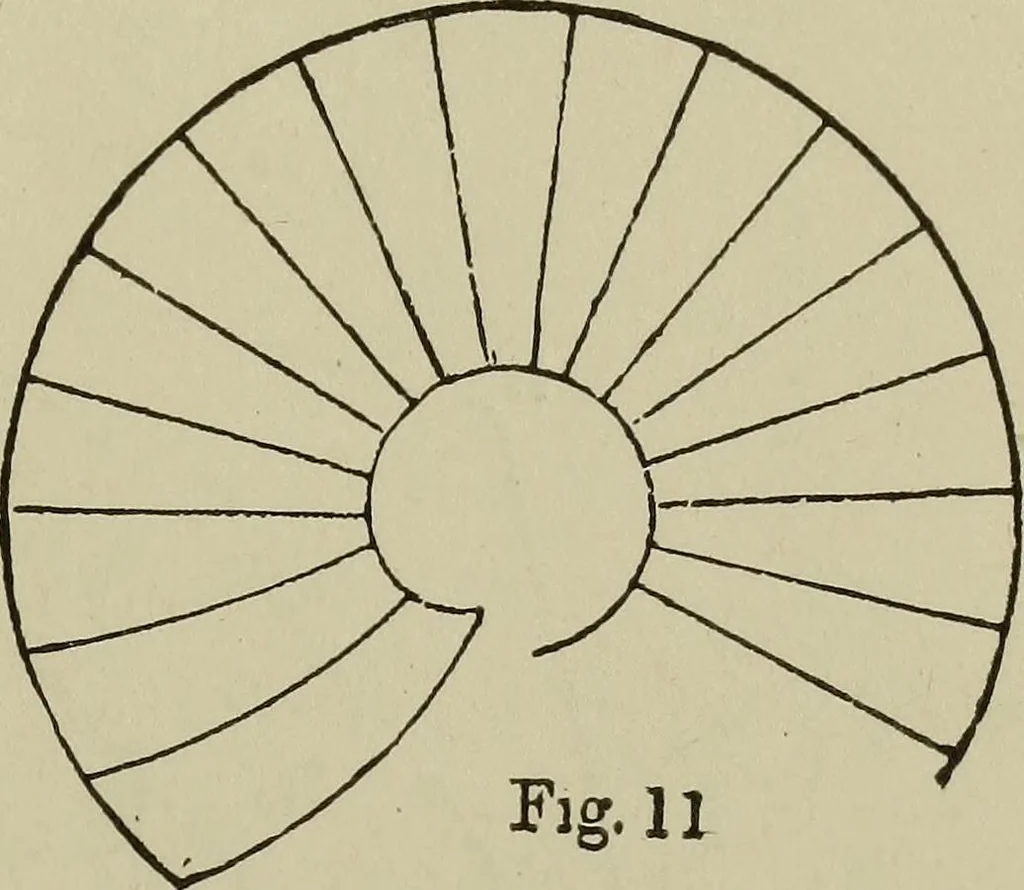

Fig. 9 is the plan of a half-space stair having fivedancing winders and a quarter-space landing. 1 /X Fig. 10/T^ V \\ Fig. 10 shows the plan of a half-space stair >vithdancing winders all around the cylinder FIRST METHOD J5 … Fig. II shows theplan of a geometricalstair having windersall around the cylin-der. As it is necessarythe student should beacquainted with themethods of develop-ment of the angle oftangents which giveshape and joints of the face moulds directly from the pitch lines, a coupleof examples are herewith…
