Common-sense stair building and handrailing .. (1913)
Hodgson, Frederick Thomas, 1836- [from old catalog] · Chicago, F. J. Drake & co · leaf 51

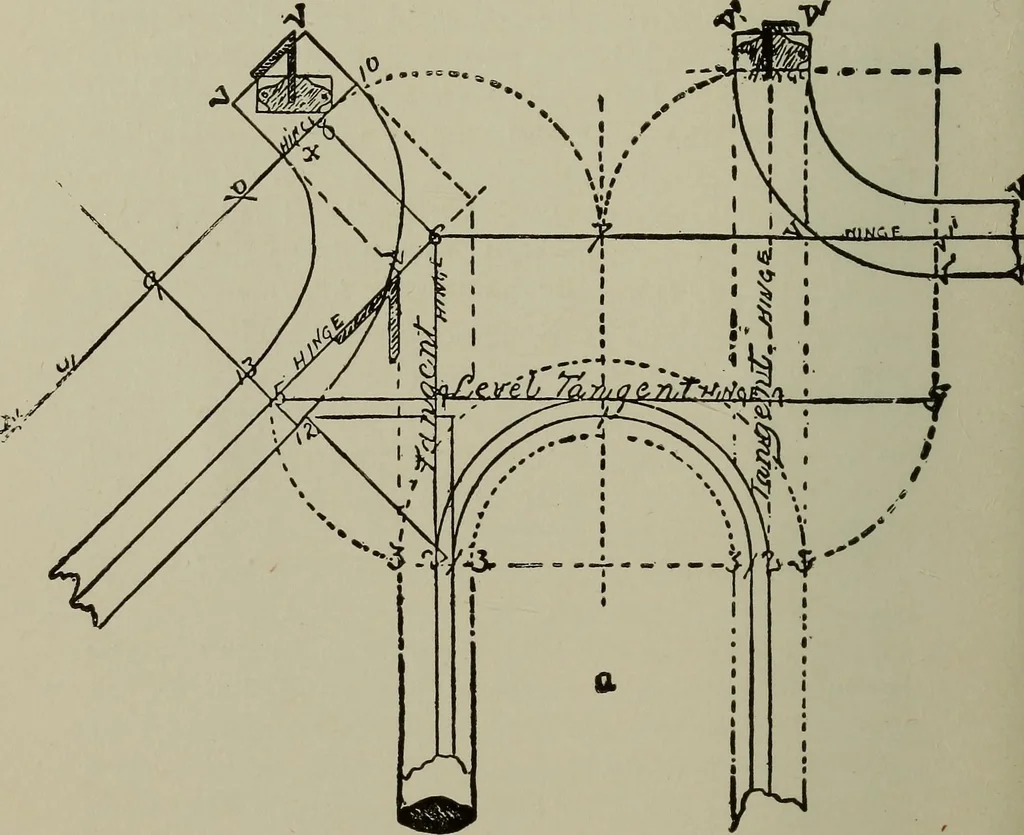

cut, locking the respective steps together,so as to provide a continuous strength to the entirecoivstruction. so COMMON-SENSli) HANDRAILING The following diagram C shows a very easy way ofgetting out stair-rails over cylinders, i-i-i being theface of cylinder, 2 the center of baluster from whichthe… … DIAGRAM C. A RAIL AROUND A CYLINDER Commence by making the tangent as shown; placehalf of the rail each side of 2-3 3; draw level tangentright and left indifferently; take the compass, stand SECOND METHOD 51 on left, describe a curve from the spring line at 2. tocut level tangent at 5; do the same…
Stair building · Hand-railing
