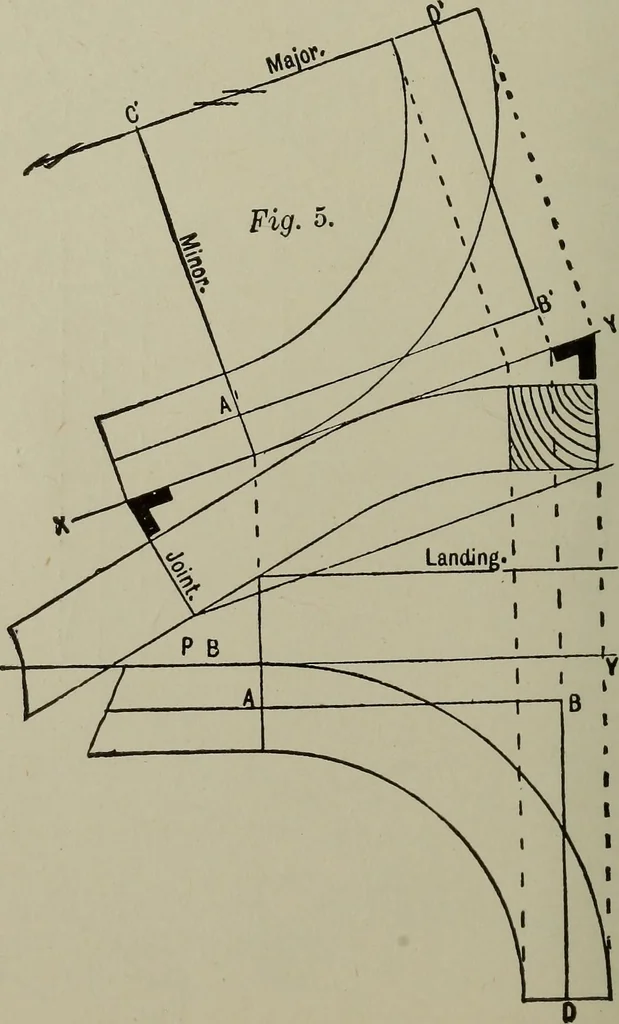

springing of thewell. Project linesdrawn from thespringing and thesection to com-plete the plan.The face mould isdrawn the same asFig. I. 64 COMMON-SENSE HANDRAILING Fig. 4 shows the wreath piece cut out and workedinto cylindrical form ready for squaring, the facemould being applied the same as in… … THIRD METHOD €$ the shank is not in the center of the stuff. The shadedportion shows the slab to come off one side. Fig. 5 shows the face mould for a large well with therisers in the springing. Project lines from the plan anddraw the section at the proper height above the land-ing. Draw the line…
