Comparative tests of Illinois Central Railroad locomotives No. 920 and No. 940 (1909)
Gibson, Miles Otto, Lorenz, Frederick Ayres · leaf 56

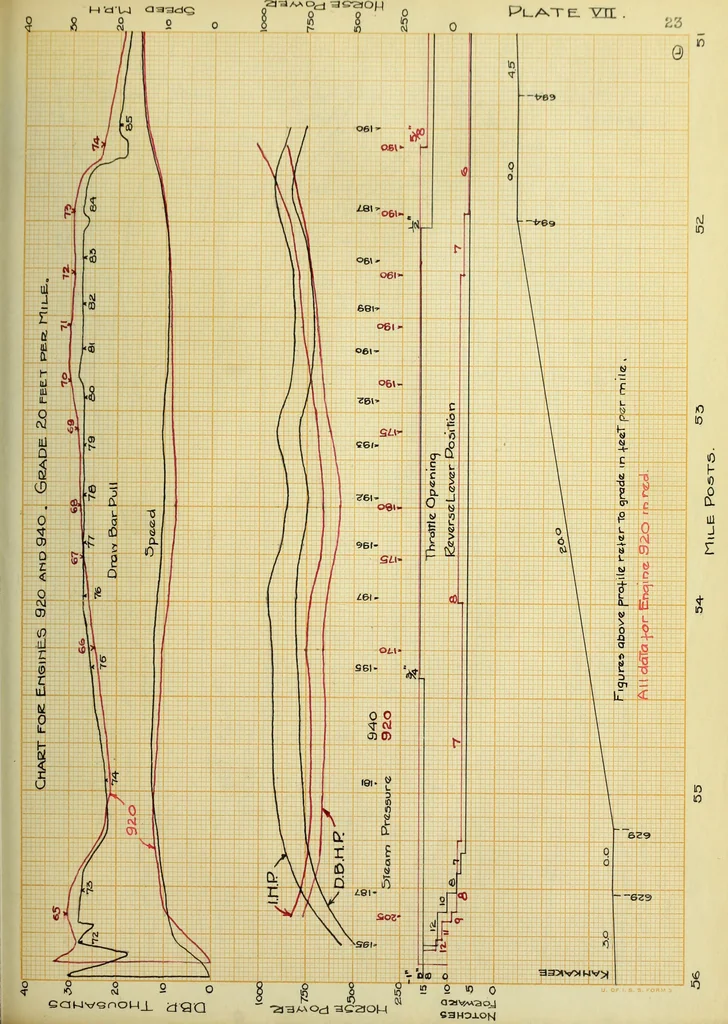

d in miles per hour, draw-bar pull,boiler pressure, indicated horse power and draw-bar horse power areplotted for the two engines. Thus at any point one is enabled tosee how either engine is working. The data plotted for the 920 isthe second trial to get over the hill with its train, after one…
Illinois Central Railroad Company · Locomotives · Theses
