Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 129

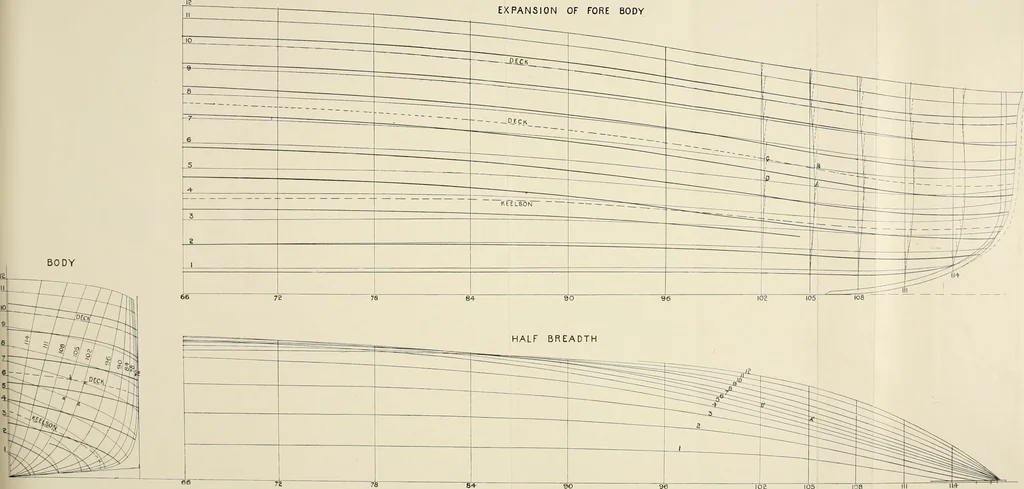

49 xi- ,hs,nd ngmtitb isin.her a iC- Ic•thel,ea ,hsonlarndofce.nt3r-onireonthalsoffhehelisn.lal iy bs.heedchis Fig. 43.EXPANSION OF FORE BODY … IOE 105 108 Hi SHELL PLATING. 49 Area of the Outer Bottom or Shell Plating.—An approxi-mate expansion of the shell plating may be found by taking the lengthsof a series of level lines, and of a series of transverse sections, andmanipulating their intersections by two sets of paper strips.…
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
