The complete motorist, being an account of the evolution and construction of the modern motor-car; with notes on the selection, use, and maintenance of the same; and on the pleasures of travel upon the public roads (1905)
Young, Filson, 1876-1938 · New York : McClure, Phillips & co.; London, Methuen & co. · leaf 149

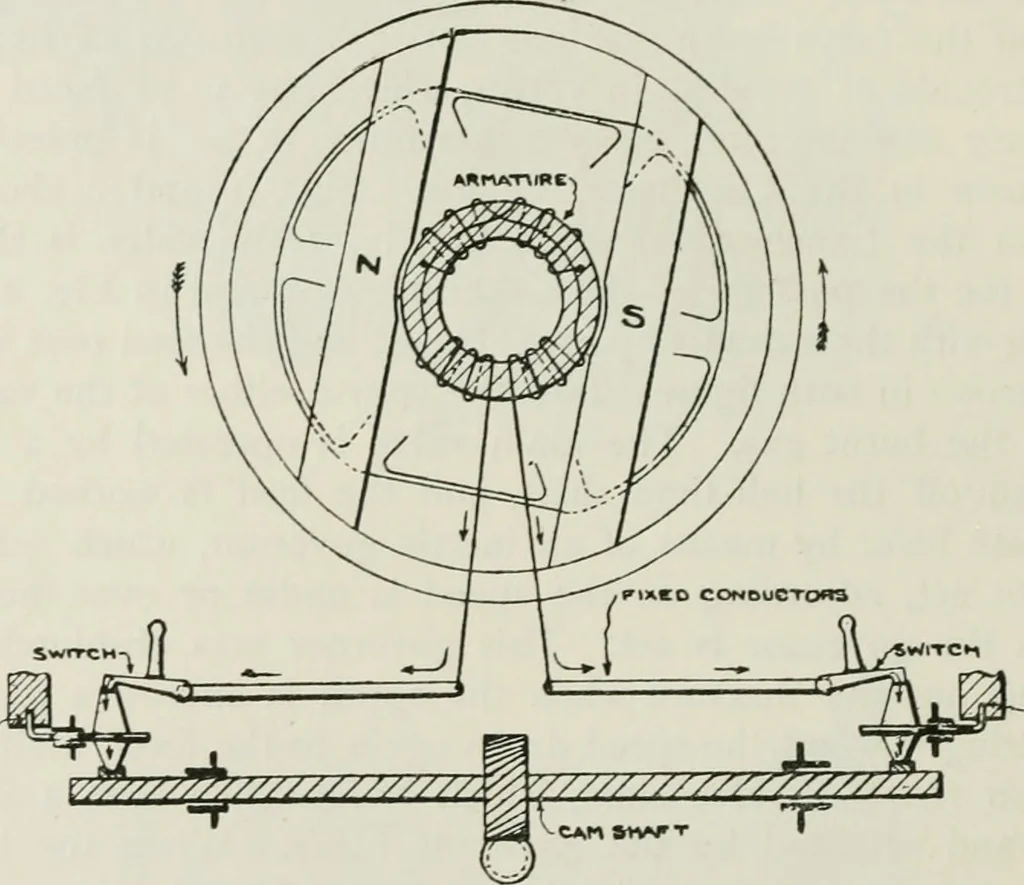

T with one another. The spark is produced by the primary coilof the armature in conjunction with a positively actuated contact-breaker. This contact-breaker is an extremely ingenious piece ofmechanism. Its construction is shown in Figs. 3 and 4.In these figures the projection described as the… … SPARrr CUB DIAGRAM OF MAGNETO AND ELECTRICAL CONNECTIONS wire which causes the rupture of the circuit by which the sparkis produced. The tweaker making contact with the igniterspring immediately closes the magneto electric circuit, andcloses it again (in parallel) by a second path at the…
Automobiles
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
