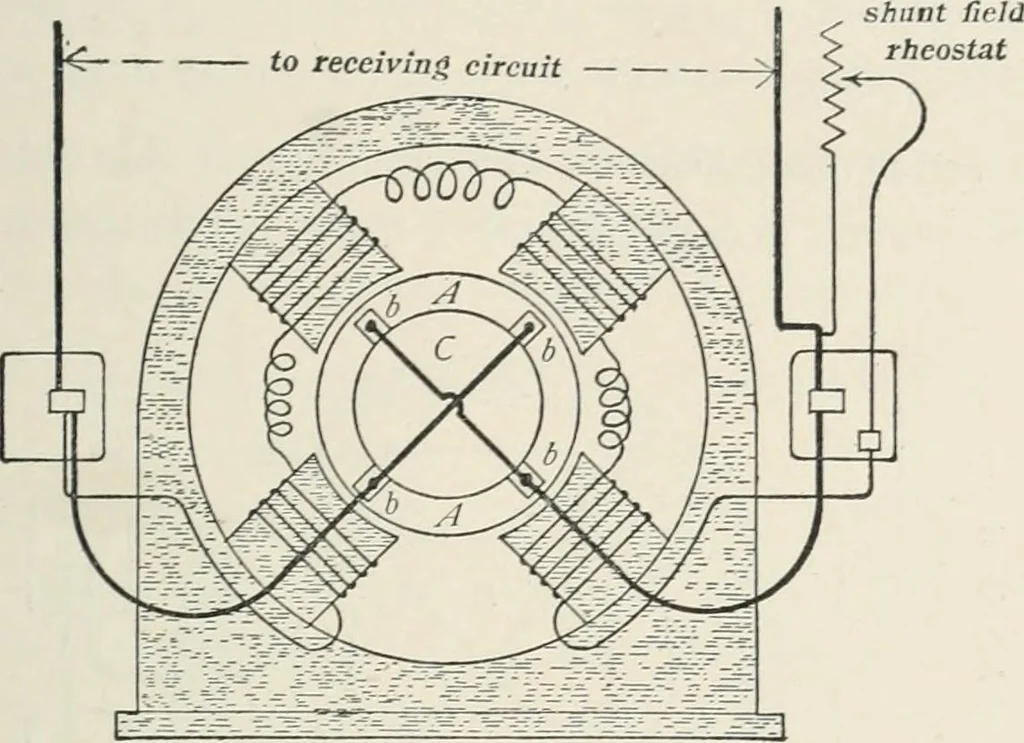

rent, we have what is called compositeexcitation. This mode of field excitation is frequently used inmoderate sized alternators as explained below. 33. The shunt generator. — The winding on the field magnet ofa direct-current generator may consist of many turns of com- THE DYNAMO AND THE… … Fig. 42. missible current output of the generator is taken to magnetize orexcite the field, the remainder being available for use in theexternal circuit. In this case the field winding and the outsidereceiving circuit are in parallel with each other between thebrushes, so that the field winding is…
