Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 104

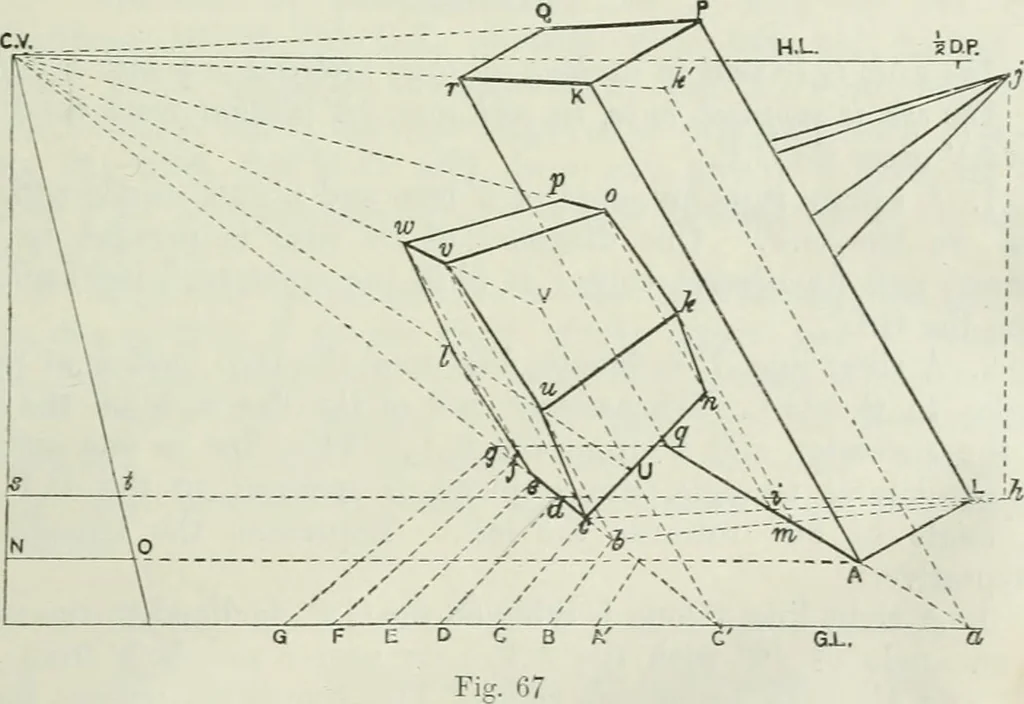

Fig. 66 Fig. 66, and join them to the h D.P. by lines meeting thereceding line from C in the points b, c, d, e,f, g. Draw the lineC^ parallel to CV in Fig. GO, but of double its length, andbisect it in U. Draw lines from U and Y to (,.Y., meetinglines drawn from the points h, c, e, f, parallel to… … points n, r, v\ I. Join these points, as shown, to complete thebase of the pyramid. Draw ah parallel to CY, and equal to twice AJv (Fig. Q&).Join /. to C.Y., meeting a line from A, drawn parallel to ah in G S2 COMPLETE PERSPECTIVE COURSE chap. K. Draw AL perpeudicular to AK and equal in length…
Perspective
