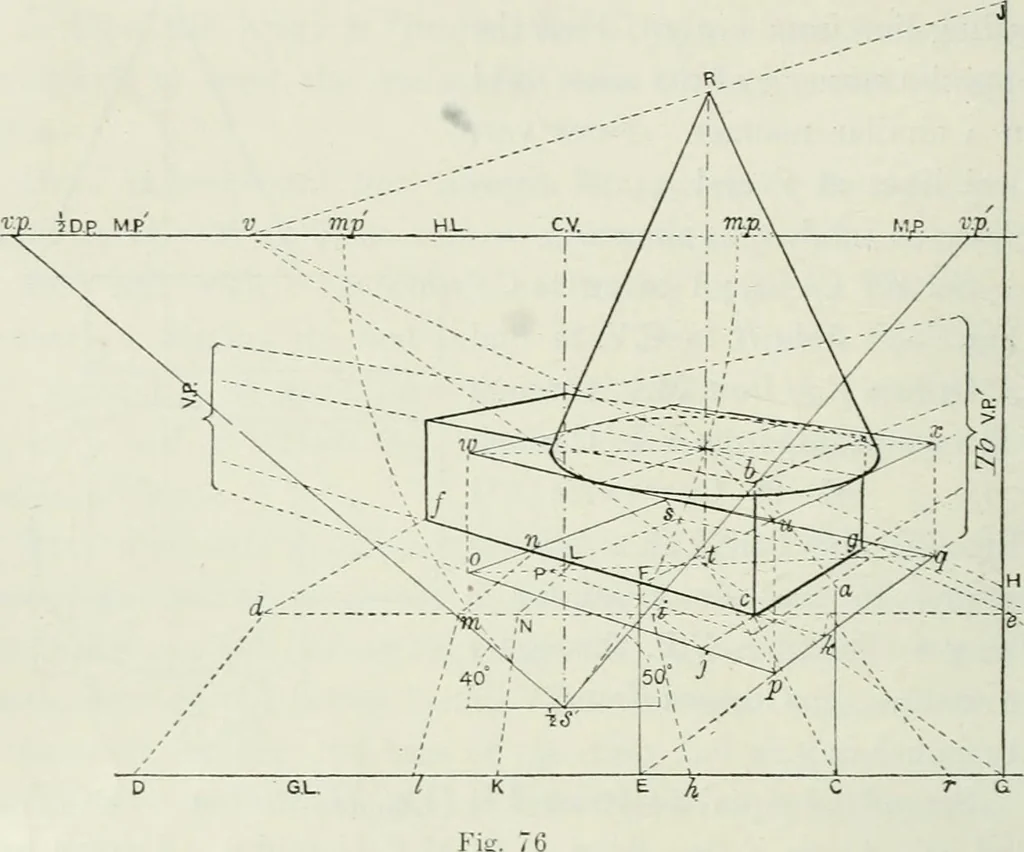

o^ to the Y.Ps. to complete theperspective square circumscribing the base of the cone. Drawdiagonals to this square, and a line through the centre fromeach Y.P. 11 98 COMPLETE PERSPFCTIVE COURSE chap. To determiue the points where a circle would cut thediagonals of this square, set off IK equal to… … a line to Y.P. Draw perpendiculars at the points just foundto the diagonals of the upper square, and draw a fair curvethrough them, touching the sides of the square, as shown. Assume any convenient point v on H.L., and draw a linefrom it through t to meet the G.L. in G. Set up GH and HJ,equal…
