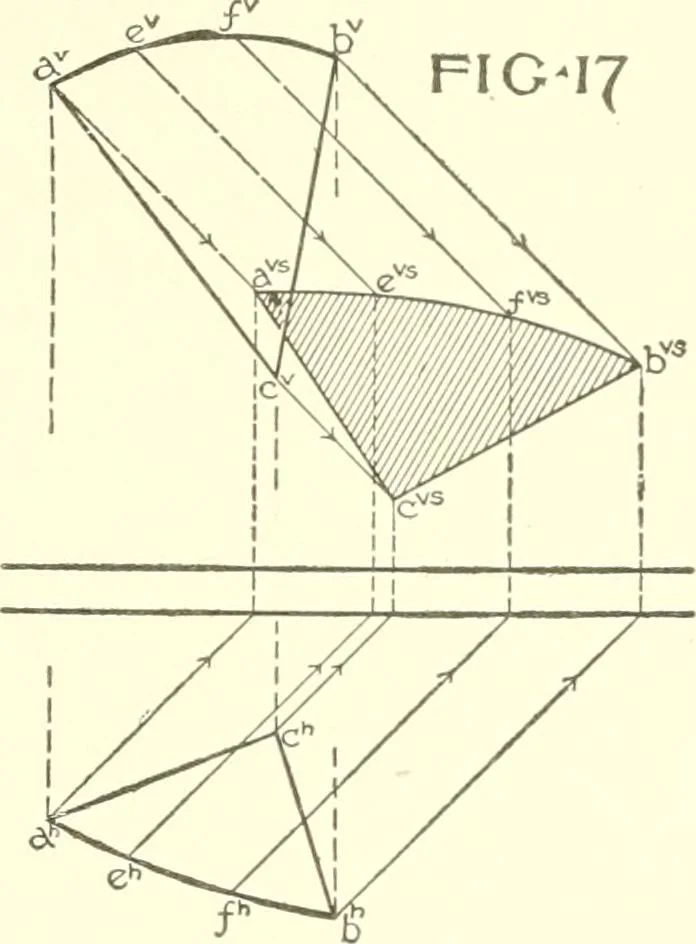

ne, the shadow must be deter-mined by methods which will be ex-plained later. SHADOWS OF PLANES. 35. Problem III. To find the shad=ow of a given plane on a given plane. Plane surfaces are bounded bystraight or curved lines. Find theshadows of the bounding lines by themethod shown in Problem II.… … FIGM8 FIGI9 That portion of theshadow hidden by theplane in elevation iscross-hatched along theedge of the shadow only.This method of indicat-ing; actual shadowswhich are hidden bythe object is to be fol-lowed in working out the problems of the examination plates. 37. Fig. 18 shows the construction…
