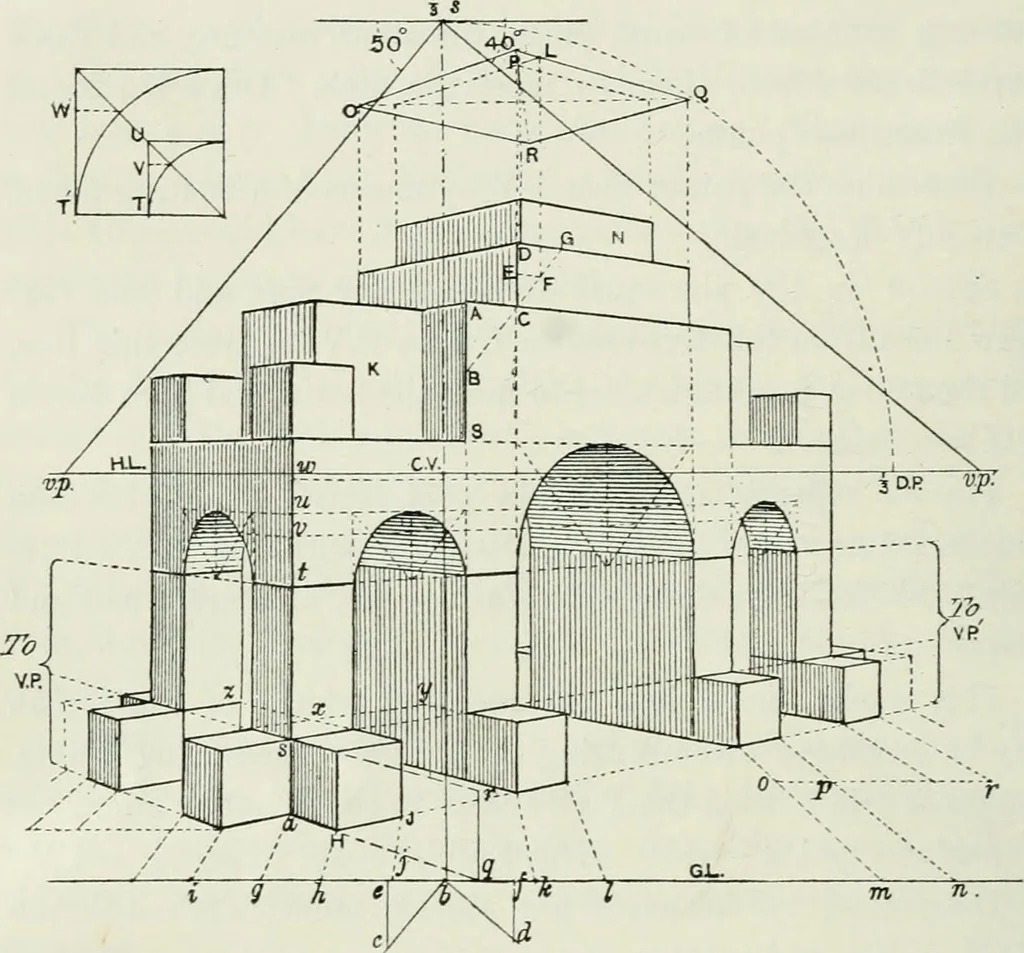

a line fromY.T. through a in H. Join H to Y.P. Set off hj=hf, anddraw a line from/ to C.Y. to meet the receding line from Hin J. Find all the other receding widths in a similar manner. no COMPLETE PERSPECTIVE COURSE chap. The smaller arches are 2 wide, and the larger arch 4 wide.The widths on the… … Fig. 81 this line and draw lines from tlie points thus found to Q.\.,meeting the receding line from H. Find the widths on tlieleft-hand side of the model in a similar manner. Draw a perpendicular at a, and lind the height a>i from theline of heights qr [48]. Set off the rei^uired dimensions on…
