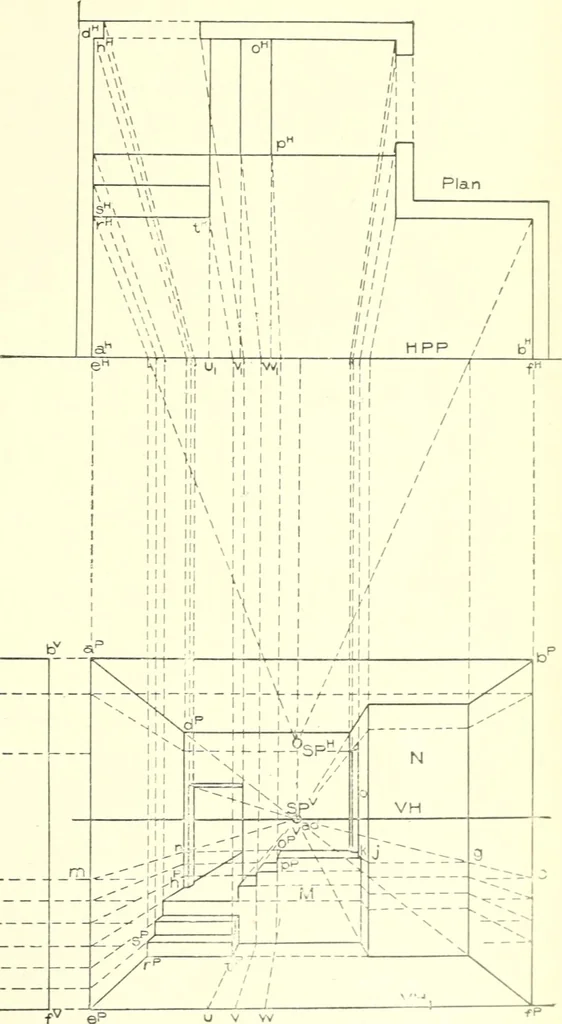

owing manner: Inthe figure the line e^f^ is a line of measures (§ 81), and divisionson this line will show in their true size. Thus, if we imagine ahorizontal line to be drawn through t^, parallel to the wall of theroom, it will intersect e\f^ in the point u. Since e^u is on a lineof measures, it… … PEESPECTIVE DHAWlKa. 51 ishiiig at v^^. The intersection of this line ^\■ith the horizontalline drawn through r^ will determine t^\ In a similar manner the vertical edges of the steps, wherethey intersect the plane M, might have been found by laying offfrom II, on e^f^, the divisions uv and vw…
