Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 145

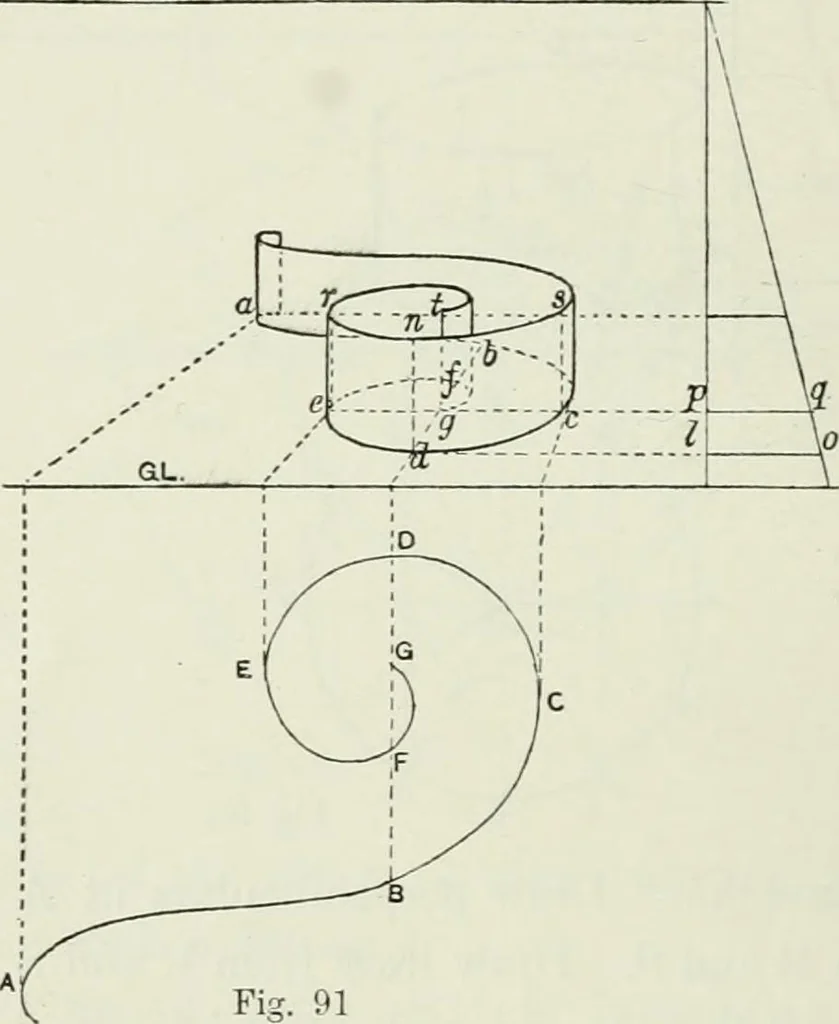

curvethrough them. To determine the height of the cylinder, draw a perspectivescale for 2 by setting off qr on G.L. = 2, and drawing r to C.V.Draw perpendiculars at the points found of the perspectivecircle, and determine their proper heights, e.g. to find the heightof the perpendicular at d, draw… … Fi^. 91 Problem -tl To drmv in perspective, from a given ^^^a^i, a scroll V in height, lying upon the G.P., ivith its faces vertical.Distance from P.P. = 8. Height of eye = 4. Scale J = 1. Pier. 91. Select any number of convenient points in the curve. We VII THE DIRECT METHOD OF PERSPECTIVE 123…
