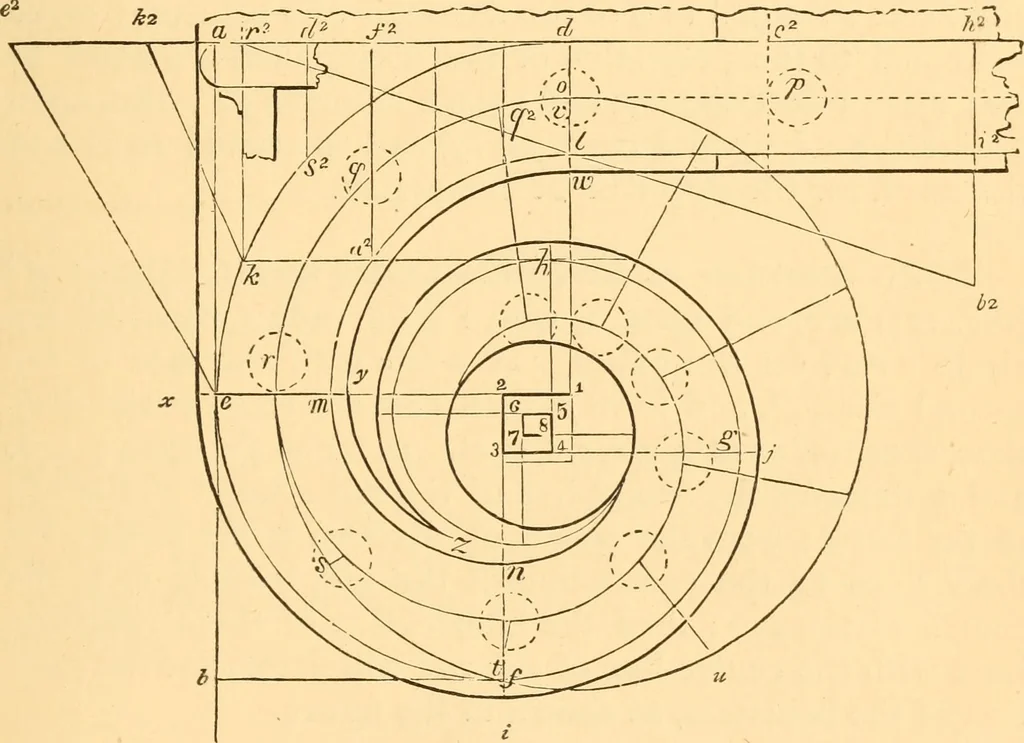

f revolutions being SCROLLS AT NEWEL. 309 I J. Divide two adjacent sides, as a 2 and 2 i, into as manyequal parts as there are quarters in the number of revolu-tions, as seven ; from those points of division draw linesacross the square at right angles to the lines divided ; thenI being the first… … Fig. 173, 290,—Scroll for Hand-Rail Over Curtail Step. — Let a b {Fig. 173) be the given breadth, if the given number ofrevolutions, and let the relative size of the regulating squareto the eye be \ of the diameter of the eye. Then, by therule, if multipled by 4 gives 7, and 3, the number of times…
