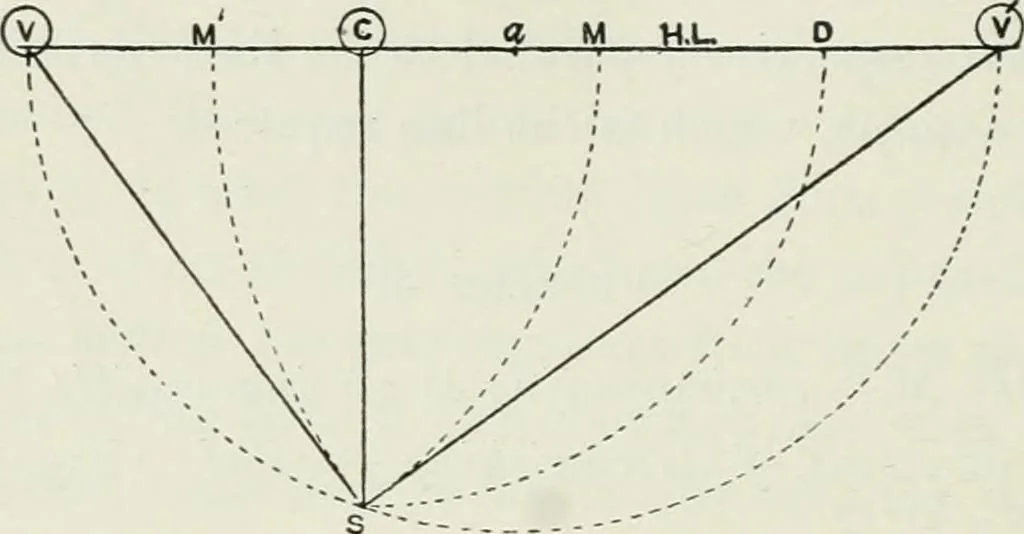

round plane. PROBLEM 47 The C.Y. cnid Y.P.s of a p)erspective dvavAng heing given, deter-mine the station p)oint, P.D., and M.P.s. Fig. 97 Note.—In the diagrams accompanying this, and the twofollowing problems, the working points that are given are K I30 COMPLETE PERSPECTIVE COURSE enclosed in… … Fig. 97 centre, and radius aY, draw a semicircle. Draw a perpen-dicular to H.L. at C, to meet the semicircle in 8. With C ascentre, and CS as radius, draw an arc to meet H.L. in D.With Y and Y as centres, and YS and YS as radii, draw arcsto meet H.L. in M and M. Teoblem 48 The H.L., station point,…
