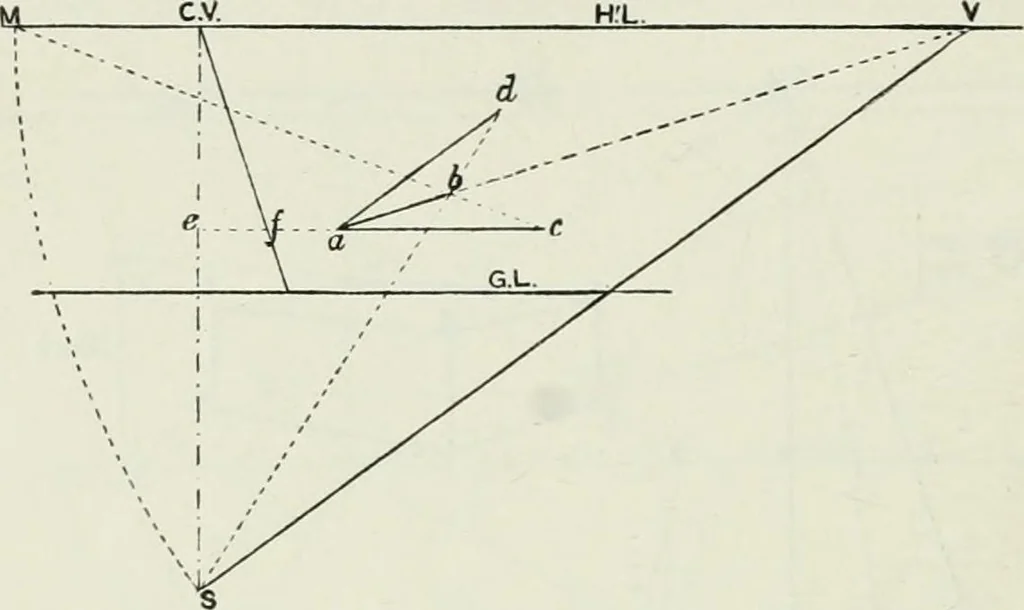

point, e.g. to measure a length of 3 on aline receding from the point a to its Y.P. (Fig, 102). Di-aw nd parallel to SV — the vanishing parallel for the ^ 134 COMPLETE PERSPECTIVE COURSE chap. receding line from a — and three times the length of rf (theperspective foot at the distance of a). Draw a… … Fig. 102 M.P., we shall find that its length will coincide with thatalready obtained, as shown. It is possible to determine the apparent length of a line inperspective by calculation only. We have shown in Fig. 92 theprinciple governing a point in perspective by similar triangles.On the same…
