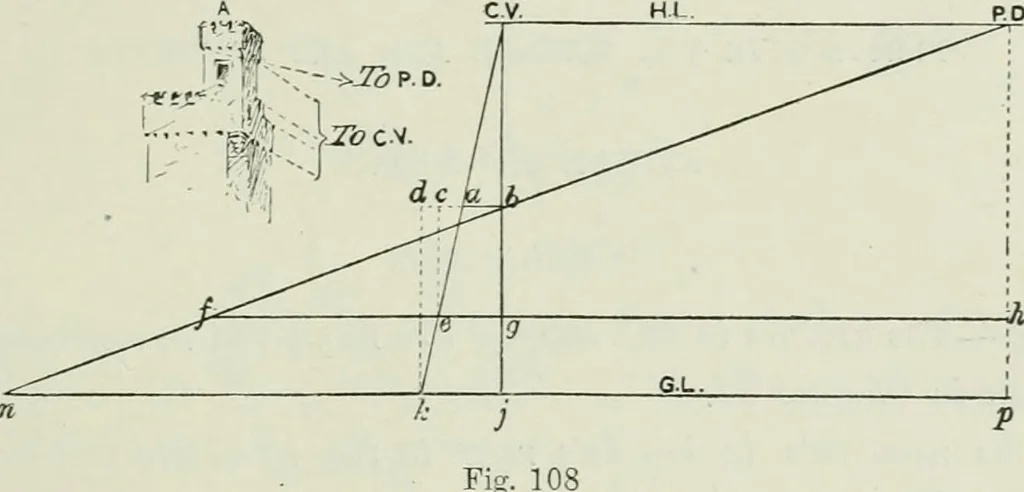

ond the limits of thisdiagram. SlECIAL PROBLEMS 141 Draw a vertical line from C.\., and in any convenientposition on this line draw ah at right angles to it, and equal inlength to the width of the turret A in sketch. Iirst assume the scale of the drawing to be ^L = 1. Producehe and make be equal to… … line in /. Then /// is the distance of the turret from thespectator to this scale (52), on a line at riglit angles to the V.V.,and ///its distance from the picture (19). AVe will now assume the scale of the drawing to be j^jj = 1.]\Iake bd equal to 4 of this scale, and draw a perpendicularfrom d to…
