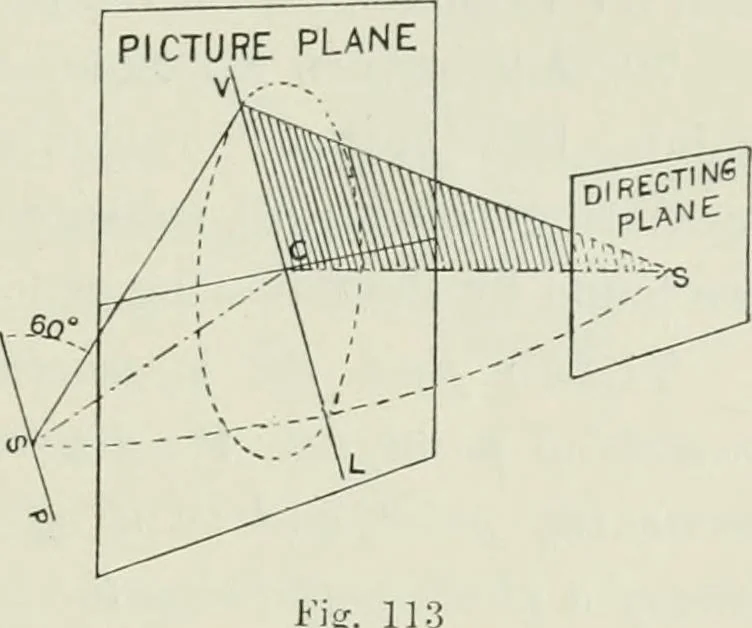

given line, and its intersection withthe picture plane is the vanishing point required [13]. 69. Directing Plane.—When receding lines are parallelto the ground plane, we set off the angle of their vanishingparallel [13], at the station point, witli the directing line [31];but when they are inclined… … directinfj plane, and is always at right angles to the directionof sight. Fig. 113 is a perspective sketch showing the position of thedirecting plane. SV is thegeneratrix of a cone [52],i.e. the vanishing parallel[13] for the required line. Let us assume that theline SV (Fig. 113) is con-tained by…
