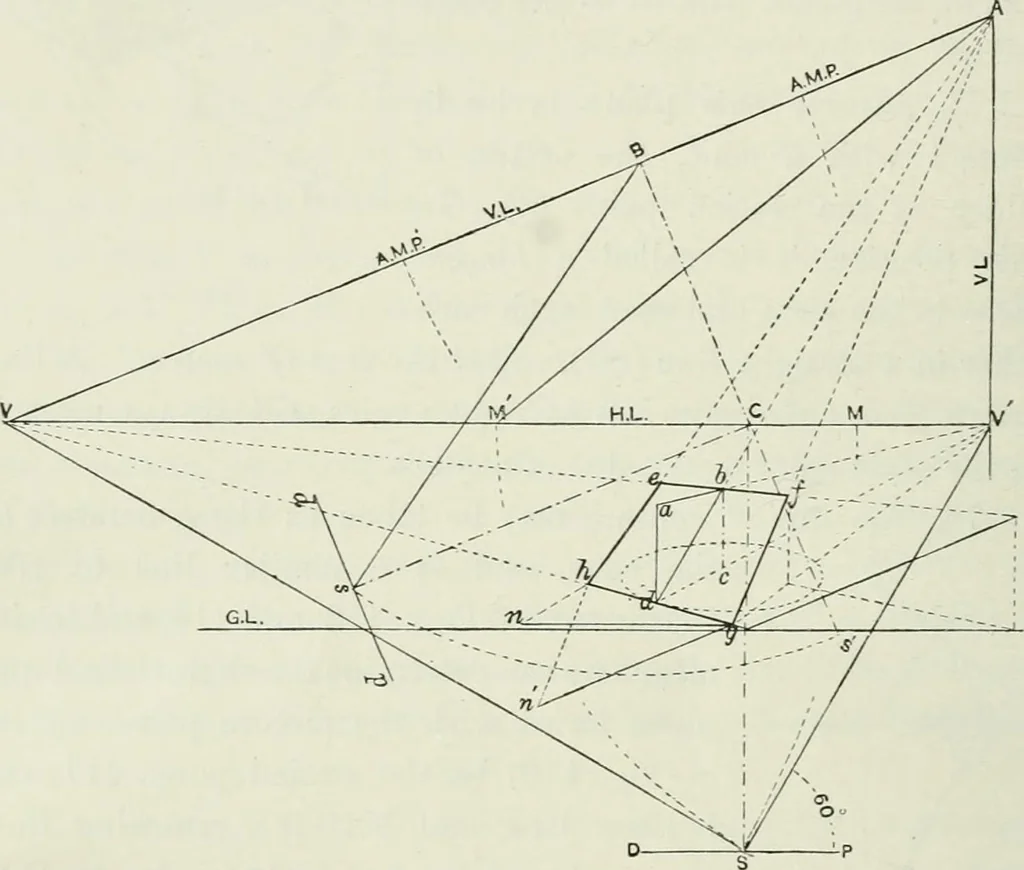

Fig. 116 152 COMPLETE PERSPECTIVE COURSE chap. V is the vanishing point for its horizontal edges [20] ; and avertical line drawn through V is the vanishing line for all planesparallel to it [59]. 77. Draw the diagonal dh, and produce it to meet thisvanishing line in A, wliich is the vanishing point… … Fig. 117 the ground plane. First determine the measuring point corre-sponding to V, as M [28]. Join A to M. Then AMV is theangle required ; because, if we assume the right-angled triangleAMV to be contained by a vertical plane on the line SV, androtate it on the edge VA, from coincidence with the…
