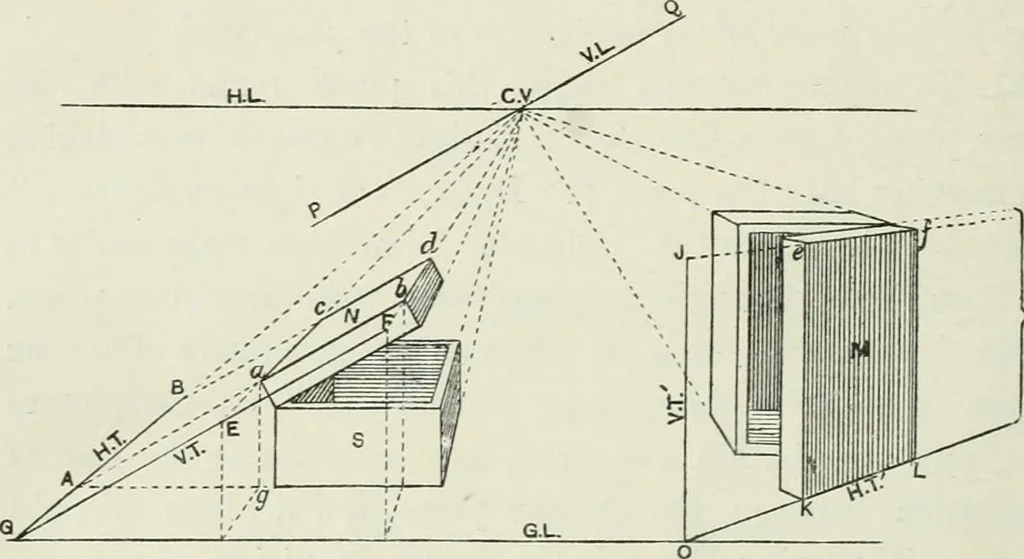

ow determine the length gh on a line parallel tothe picture plane at the distance of g. Draw a line from itsmeasuring point M, through li, to meet a horizontal line from gin n. Then gn is the length required. Suppose we wish tomeasure the length gh by means of the accidental measuringpoint… … yb\f.p. Fi- lis meets the ground plane is called its horizontal trace, and theline in which a plane produced meets the picture plane is calledits vertical trace. Vertical traces are also coWedi jyiciure lines [40]. We shall find the small box we have used in previousillustrations very useful to…
