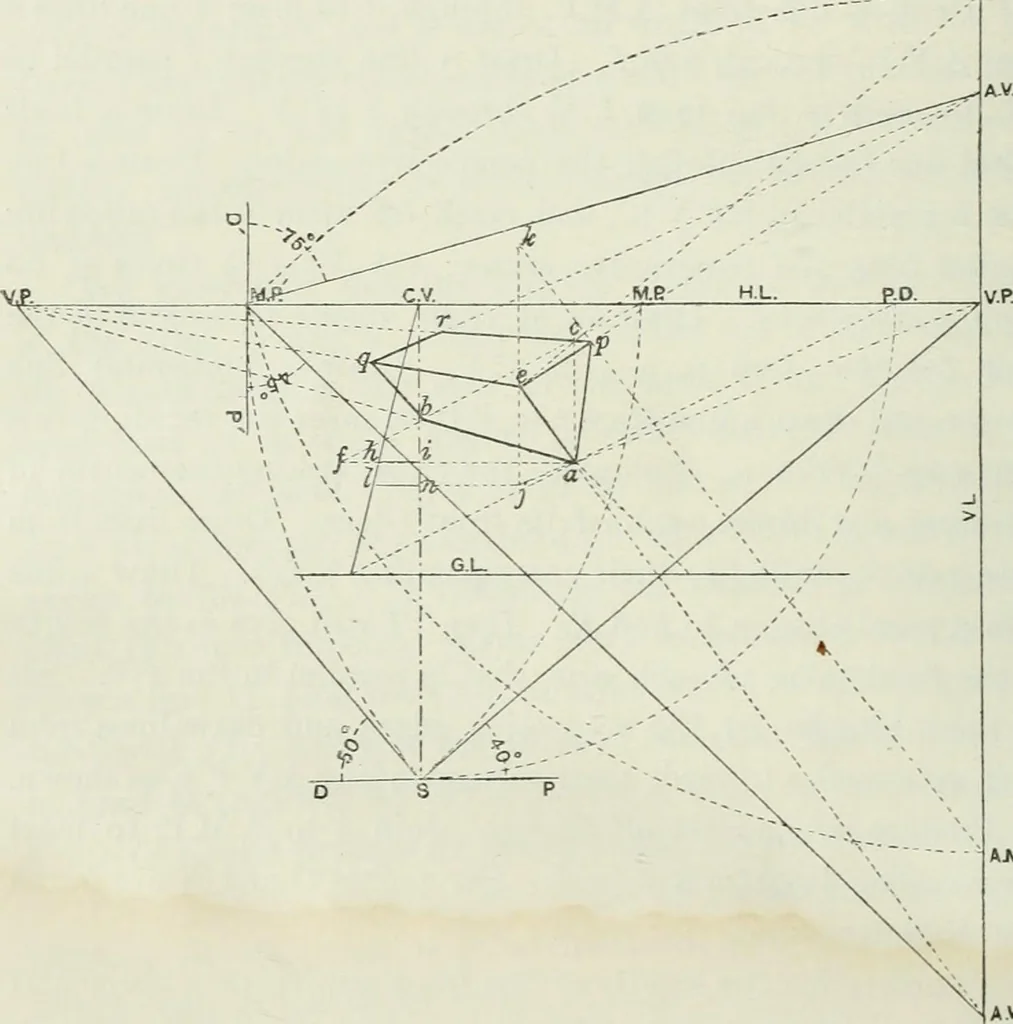

ECTIVE COURSE Problem 59 Draiu an equilateral triamgidar prism 6 long, and with eachface 3 wide, lying on one of its longer edges, with one ofits faces inclined to the G.P. at an angle of 45°. Itslonger edges are to recede to the left at an angle of oO°with the P.P., and the nearer end of the edge… … Fig. 12-150° with the P.P., the vertical planes containing its ends nuist X SOLIDS IX COMPLEX POSITIONS 167 recede to the right at an angle of 40° ; and as the V.L. for suchplanes must pass through the V.P. for horizontal lines in theplane [59], first find the V.P.s (V.P. and V.P.) for…
