Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 197

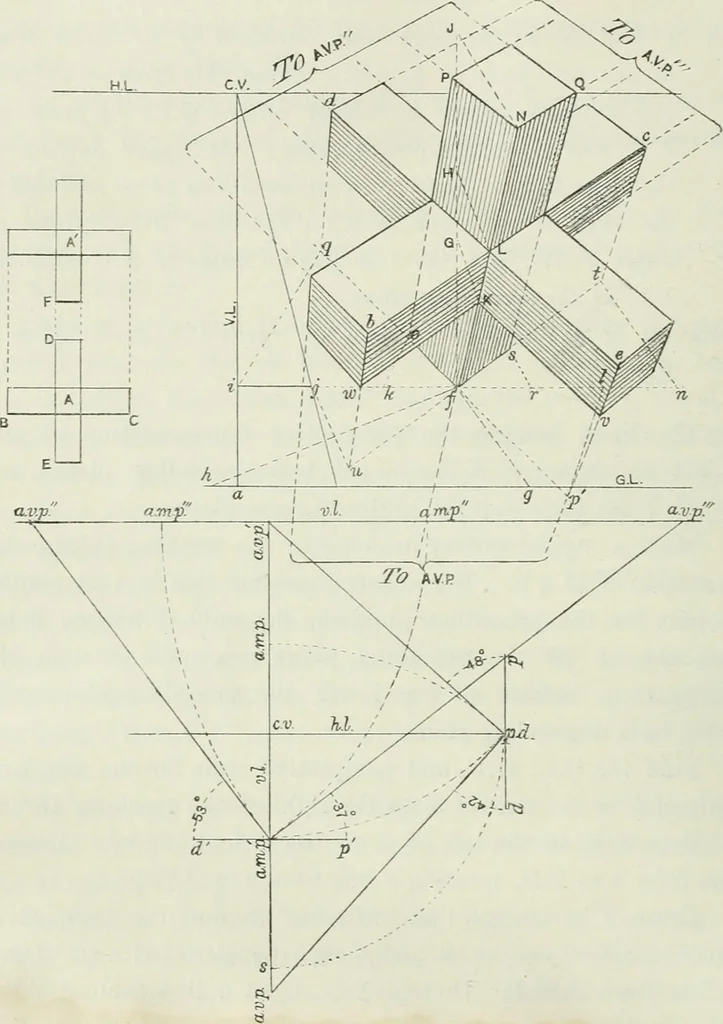

perspectivefoot (/. Set o&fr = ij, rn and _^each equal to twice ij. Drawa line from A.M.P. through J to meet a line from A.Y.P.through/in u. Draw lines from r and n to A.M.P., meetingthe receding line from/in the points s and t. Find the points//, 0, q in a. similar manner. Draw a vertical line… … Fi-. 12/ Draw lines from A.Y.P. through the jioiuts X, L, Kto meet lines drawn from A.Y.P. through the points v, s, t todetermine the points Z>, Q, c. Find the points c, P, d in a X SOLIDS IN COMPLEX POSITIONS 175 similar manner, and draw lines from them to the several V.P.sto complete the…
Perspective
