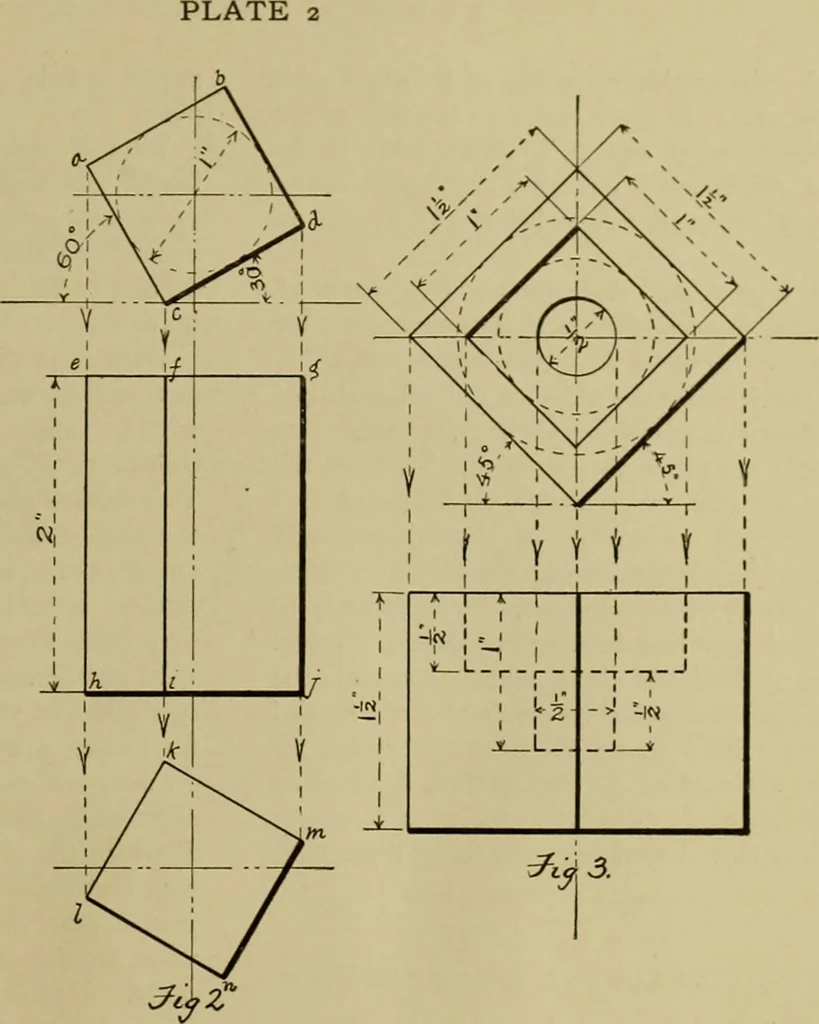

44 A MANUAL OF MECHANICAL DRAWING. Fig. 3.—A cube resting upon one of its edges withsides at angles of 45° to horizontal. In one face of thecube is a depression i square, ^ deep, while in thecentre of this depression is a further depression, round•J diameter, -J deep, the cube being i^ square…
