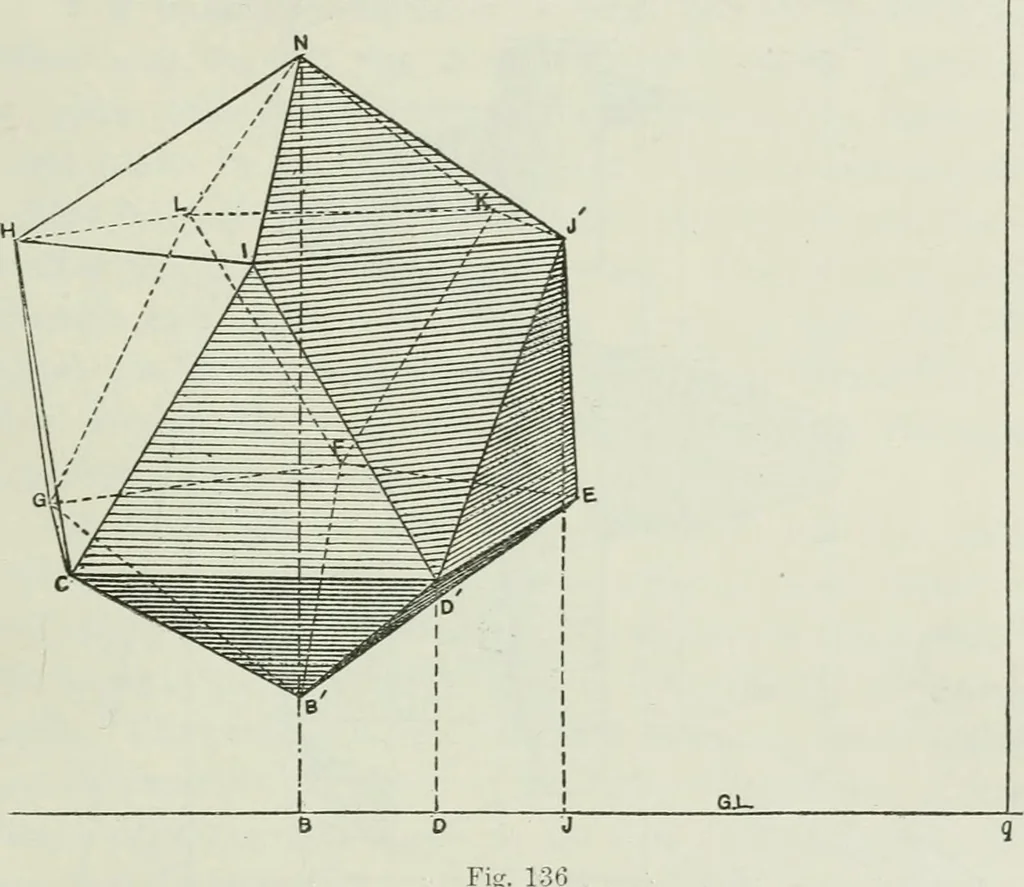

p at right angles to hp, 2 long, to find q. Drav; aline from g- parallel to hp, for the position of the P.P. in plan. SOLIDS IX COMPLEX POSITIONS 191 Set oft from q, on i-iq produced, 12, to find the station point.J )ra\v lines from each of the points of the solid, in plan, towardsthe station point… … of the G.P., and set up 3 above it for the height of tlie H.L.Set off hq = hp, and draw a vertical line at q to find C.V. Weknow that C.V. is the elevation of the station point, and there-fore that lines drawn from the various corners of the figure toC.V. must give the visual rays in elevation. Set…
